KLJ45/40 Brick Extruder Machine 6-15t/H Capacity Brick Extruder Machine

KLJ45/40 Brick Extruder Machine 6-15t/H Capacity Brick Extruder Machine
Features Gallery Product Description Request A Quote
Diameter Of Auger: 450/400mm
Max-extruding Pressure: 3.0mpa
Weight (motot Included): 12000kg
Power: 55-75kw
Dimension: 7*3*1.8m
Type: Compact Structure Vacuum Extruder
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

Brick Extruder Machine 6tph


Brick Extruder Machine 15tph


450mm clay brick extruder

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KLJ45/40
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15~35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

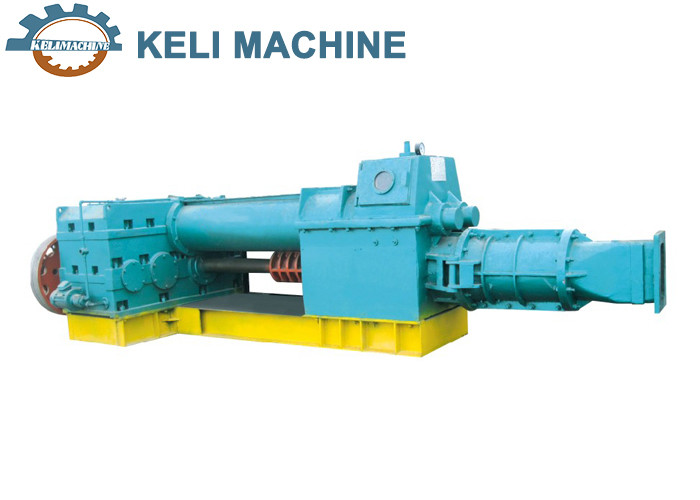

KLJ45/40 Vacuum Extruder 6-15t/h Capacity Brick Extruder Machine


Compact structure vacuum extruder
Item KLJ45/40

Diameter of auger



Max-extruding pressure






Weight (motot included)










Product Introduction
  • Compact vacuum extruder is the main molding equipment for producing solid bricks.
  • Adopting advanced axial pneumatic clutch in China, it can quickly clutch and work reliably.
  • The compact vacuum extruder is driven by a clutch and a reducer through synchronous split flow, stirring up and extruding down, coordinating operation, and extruding clay, shale, fly ash, coal gangue and other raw materials into various solid bricks, porous bricks, and hollow bricks.
  • The compact vacuum extruder is an integrated vacuum squeezing equipment. Further stir (or add steam), extract, extrude, and extrude the brick making raw materials that have undergone batching, stirring, and rolling treatment to form ordinary bricks or hollow brick clay strips, and cut them into various specifications of brick billets through a cutting machine.
  • The extruder includes four parts: upper level, lower level, vacuum system, and electric clutch system. The entire machine adopts an all steel welded structure, undergoes artificial aging treatment, and has high strength; The structure is more compact and concise than the two-stage series.
  • The compact vacuum extruder has the advantages of high extrusion pressure, high vacuum degree, dense molding, pressure resistance, strong bending resistance, compact structure, stable performance, simple installation, high body quality, hard tooth surface transmission, long service life, and energy saving.
  • It is a forming supporting equipment for producing clay boards, split bricks, roof tiles, and clay bricks.
  • This machine has a large extrusion flow rate, high extrusion efficiency, high load-bearing capacity, convenient operation, low energy consumption, low noise, compact structure, and stable performance.
  • This model is a carefully designed and developed equipment based on the comprehensive requirements for producing high-end ceramics and tiles.



Other Models
Item Unit Specification
KLJ40/35 KLJ40/40 KLJ45/35 KLJ45/45
Diameter of auger mm 400/350 400/400 450/350 450/450
Max-extruding pressure mpa 3.0 3.0 3.0 3.0
Power kw 45-55 55-75 55-75 90-110
Weight (motot included) kg 8000 9000 10000 14000
Dimension m 6*2.8*1.5 6.5*2.8*1.5 7*3*1.5 7*3*1.8
Capacity T/H 4-8 4-10 4-12 10-20



KLJ45/40 Brick Extruder Machine 6-15t/H Capacity Brick Extruder Machine 0
