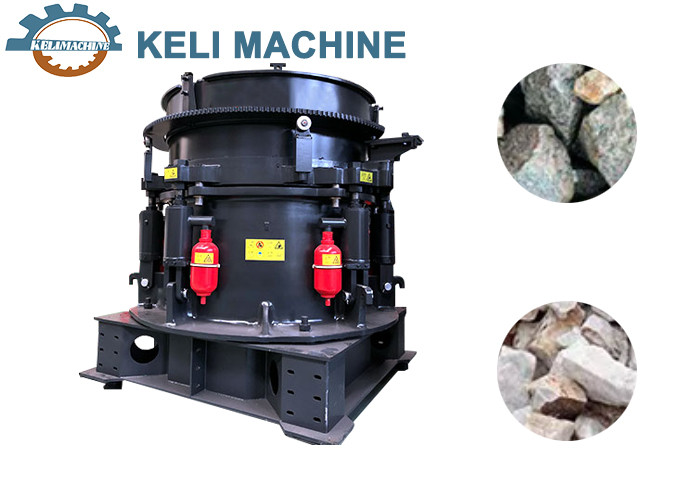

Mill Crusher High Performance Multi-Cylinder Hydraulic Cone Crusher

Mill Crusher High Performance Multi-Cylinder Hydraulic Cone Crusher
Features Gallery Product Description Request A Quote
Product: Multi-cylinder Hydraulic Cone Stone Crusher
Width Of Feeding Opening: 330mm
Diameter Of Large End Of Crushing Cone: 1400mm
Max. Feeding Size: 280mm
Processing Capacity: 140-630t/h
Adjusting Range Of Discharge Opening: 26-51mm
High Light:

high pressure mill crusher


5 rollers mill crusher


raymond roll mill crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KL-HPC400
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher High Performance Multi-Cylinder Hydraulic Cone Crusher


Model Cavity Diameter of large end of crushing cone(mm) Width of Feeding Opening(mm) Max. feeding size (mm) Adjusting Range of Discharge Opening (mm) Processing capacity(t/h) Main motor power(kw)
KL-HPC200 C1 900 210 178 22~38 90-250 132-200
C2 155 132 18~38
C3 130 110 14~38
F1 118 100 12~25
F2 90 76 10~25
F3 70 60 8~25
KL-HPC300 C1 1100 235 200 26~45 110-440 180-250
C2 211 180 20~45
C3 135 115 16~45
F1 124 105 14~25
F2 96 82 12~25
F3 70 60 8~25
KL-HPC400 C1 1400 330 280 26~51 140-630 280-355
C2 200 170 22~51
C3 152 130 16~51
F1 135 115 12~25
F2 106 90 10~25
F3 80 68 8~25
KL-HPC500 C1 1500 335 285 32~51 175-790 355-450
C2 229 190 25~51
C3 180 152 19~51
F1 152 130 13~25
F2 124 105 10~25
F3 88 75 8~25
KL-HPC800 C1 2000 385 326 32~51 260-1200 550-630
C2 350 298 25~51
C3 280 238 16~51
F1 160 136 13~25
F2 120 102 10~25
F3 90 77 8~25

Product Introduction

HPC series cone crusher is a new generation of multi-cylinder hydraulic cone crusher, which is supported by a large amount of field data of the previous generation HP series and the introduction of foreign technology. With higher output, lower power consumption, more comprehensive host warning protection and a new generation of intelligent control system, HPM cone crusher will be your reasonable choice to improve operation and profit.


  1. Fixed-axis structure design, large crushing force, small investment in equipment foundation.
  2. Hydraulic motor adjusts the discharge opening to adjust the operation conveniently, and can realize the precise control of the discharge opening.
  3. PLC+touch screen automatic control system ensures the safe operation of the equipment.
  4. Rolling mortar wall does not need packing, quick and easy to replace.
  5. Laminated crushing cavity design, uniform product size, cubic, low energy consumption.
  6. All parts can be disassembled and assembled from the upper part and the side, which is convenient for equipment maintenance.

Higher output

The design of large eccentric distance and high oscillation frequency can make the equipment operate at lower speed, and the product gradation can be changed to produce less fines, which brings higher output and larger crushing ratio.

Better Quality

HPM series cone crusher adopts the principle of laminar crushing, which makes the product size uniform and the grain shape square, and improves the product quality.

Intelligent control

Adopting Siemens PLC+touch screen intelligent automation control system and remote control system, which improves the safety factor of equipment operation and makes the operation more simple and convenient.

Easy maintenance

All parts of the mainframe can be disassembled from the top or side, which makes the operation more convenient and efficient, saves labor and time, and lowers the maintenance cost.

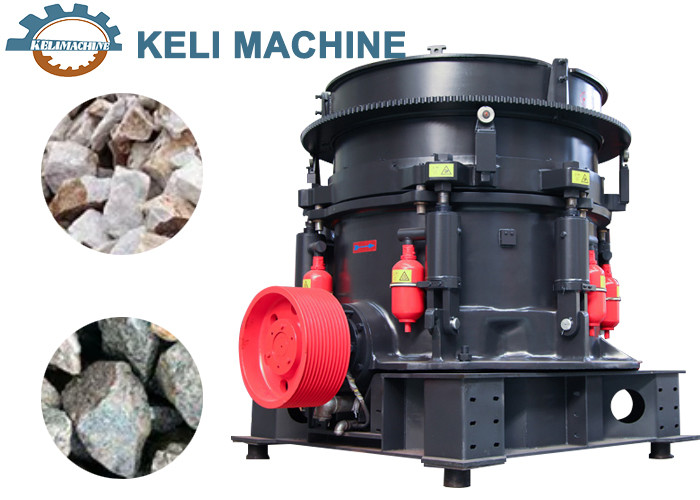

Mill Crusher High Performance Multi-Cylinder Hydraulic Cone Crusher 0
