Single Cylinder Hydraulic Pressure Limestone Cone Crusher Large Capacity Granite Crusher

1set
MOQ
Negotiable
Price
Single Cylinder Hydraulic Pressure Limestone Cone Crusher Large Capacity Granite Crusher
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 250-315t/h
Power: 350-750kw
Adjusting Range Of Discharge Opening: 35-100mm
Type: Mill Crusher
Feeding Size: 400mm
Product: Single Cylinder Hydraulic Pressure Limestone Cone Crusher
High Light:

high pressure mill crusher

,

5 rollers mill crusher

,

raymond roll mill crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KL-DG400
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

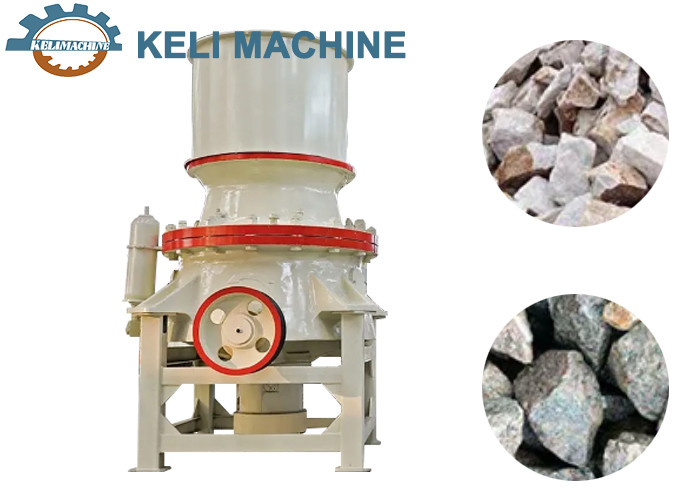

Single Cylinder Hydraulic Pressure Limestone Cone Crusher Large Capacity Granite Crusher



Product details

Single Cylinder Cone Crusher

Single Cylinder Cone Crusher is widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.

  • Applicable materials: suitable for iron ore, river pebbles, cobbles, granite, lapis lazuli, potassium feldspar, sandstone, shale, building stone and so on.

Advantages

  • Simple structure, strong reliability, easy maintenance, less money spent on operation.
  • Long life liner
  • Large production capacity, high crushing efficiency and low energy consumption.
  • PLC+touch screen automatic control system ensures the safe operation of the equipment.
  • Rolling mortar wall does not need packing, quick and easy to replace.
  • Combination of various cavities, adapting to the needs of a variety of particle size

Application

  • Single-cylinder hydraulic cone crusher is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemicial industry, etc. It could crush limestone, granite, basalt, riverstone, coal gangue, quartz, diabase, iron ore, cooper ore, zinc ore, manganese ore with medium compressive strength or the above.
Model Cavities Feeding Size(mm) Adjusting Range of Discharge Opening (mm) Capacity(t/h) Power(kw)
KL-DG100 Coarse 200 20-50 80-190 75-90
Medium 150 16-40 60-125
Fine 50 10-30 40-100
KL-DG200 Coarse 250 20-70 160-280 132-160
Medium 220 16-50 120-230
Fine 70 10-30 100-210
KL-DG300 Coarse 300 30-80 260-650 220-250
Medium 240 20-60 200-400
Fine 100 16-30 150-300
KL-DG400 Coarse 400 35-100 350-750 250-315
Medium 300 25-70 260-500
Fine 150 18-40 180-370
KL-DG500 Coarse 500 40-120 480-1050 280-315
Medium 350 30-80 335-900
Fine 160 20-50 220-680
  • The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher. It obviously can prolong the life of your crusher. The final machining is carried by CNC machine to ensure each dimension tolerance, which helps to make your assembly easy and fast, to improve the efficiency of your production and maintenance.
  • When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic conerotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.

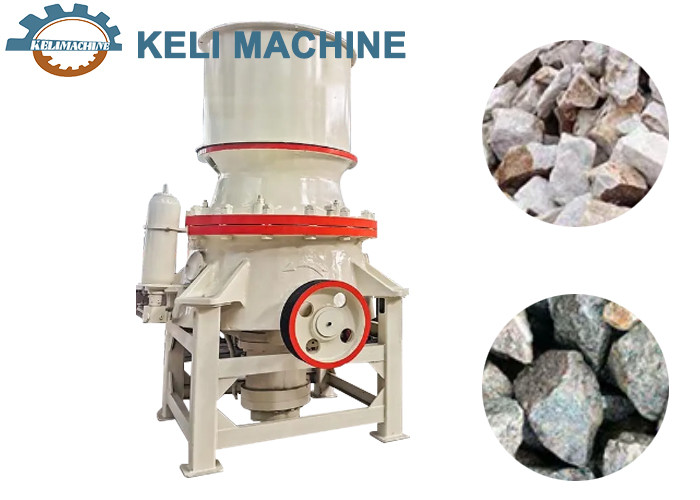

Single Cylinder Hydraulic Pressure Limestone Cone Crusher Large Capacity Granite Crusher 0
