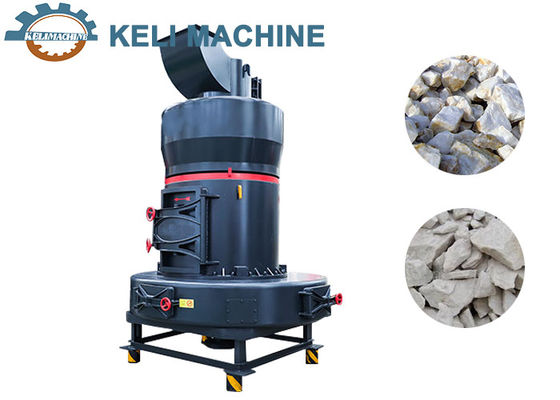

Mill Crusher Slag Limestone Gypsum Grinding Equipment Raymond Mill

1set
MOQ
Negotiable
Price
Mill Crusher Slag Limestone Gypsum Grinding Equipment Raymond Mill
Features Gallery Product Description Request A Quote
Features
Specifications
Product: Slag Limestone Gypsum Grinding Equipment
Output Size: 0.125-0.044mm
Roll Dia.: 260*150mm
Max. Input Size: 20mm
Roll Ring Size: 780*150mm
Dimension: 4650*3600*5100mm
High Light:

high pressure mill crusher

,

5 rollers mill crusher

,

raymond roll mill crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KL-3R2615
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher Slag Limestone Gypsum Grinding Equipment Raymond Mill



Product Description
  • Machine component:mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc.Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble,talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, ect.
  • Raymond mill, also known as raymond grinding mill, raymond roller mill and raymond grinder, is suitable for grinding non-flammable and non-explosive materials.The finished powder size can be adjusted between 30 and 425 mesh(0.613mm-0.044mm).
  • Raymond mill is suitable for process in various non-flammable mineral which is below seven Mos hardness, moisture below 6%, such as limestone, calcite carbonate,dolomite, barite, talc, gypsum, diabase, quartz, bentonite, bauxite, iron ore, etc.

Advantage

1. Stable rotation, reliable operation

Raymond mill host transmission device adopts sealed gear box and belt wheel, smooth transmission, reliable operation.

2. High sieving rate

Compared with other milling equipment, it has a high through-screening rate, which is up to 99%, and is generally unattainable by other milling equipment.

3. Long service life of wearing parts

The materials of wearing parts are high manganese steel, long service life, and the motors are national standard products.

Model Roller

Roll Dia.

(mm)

Roll Ring Size

(mm)

Max. Input Size

(mm)

Output Size

(mm)

Capacity

T/Shaft

Power

(Kw)

Dimension
KL-3R 1510 3 150*100 570*100 15 0.125-0.044 0.8-10 7.5

3200*1200

*3800

2115 3 210*150 630*150 15 0.125-0.044 1-12 15

3500*3300

*4500

2615 3 260*150 780*150 20 0.125-0.044 1.5-20 18.5

4650*3600

*5100

2715 3 270*150 830*150 20 0.125-0.044 2-28 22

4700*3600

*5100

3015 3 300*150 875*150 25 0.125-0.044 2-35 30

5300*4100

*5200

KL-4R 3016 4 300*160 890*160 25 0.125-0.044 3-36 30

5400*4100

*5200

3216 4 320*160 970*160 25 0.125*0.044 4-45 37

7100*5900

*7900

3220 4 320*200 970*200 25 0.125-0.044 4-55 45

9900*5800

*1058

KL-5R 4119 5 410*190 1270*190 30 0.613-0.044 8-60 75

9200*7250

*9700



Mill Crusher Slag Limestone Gypsum Grinding Equipment Raymond Mill 0
