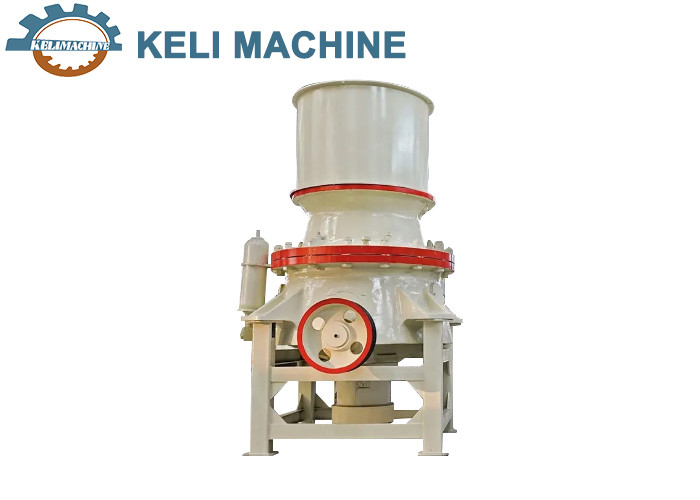

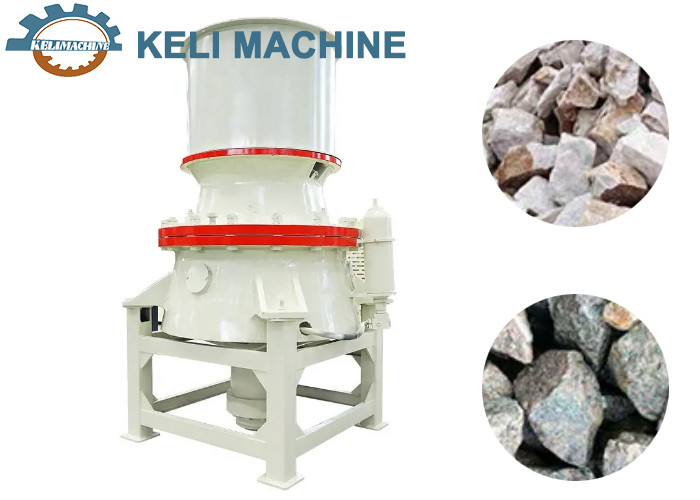

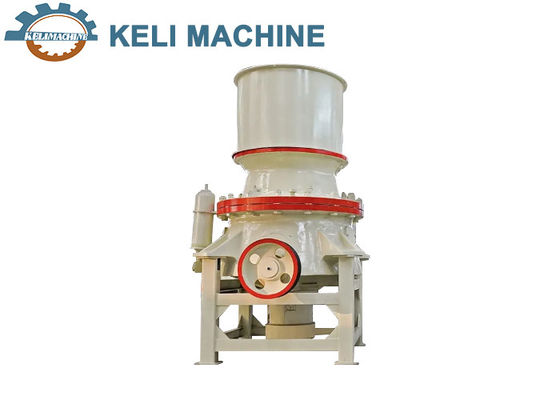

Mill Crusher Single Cylinder Hydraulic Pressure Limestone Cone Stone Crusher

1set
MOQ
Negotiable
Price
Mill Crusher Single Cylinder Hydraulic Pressure Limestone Cone Stone Crusher
Features Gallery Product Description Request A Quote
Features
Specifications
Product: Single Cylinder Hydraulic Pressure Limestone Cone Stone Crusher
Feeding Size: 200mm
Type: Mill Crusher
Capacity: 80-190t/h
Power: 75-90kw
Adjusting Range Of Discharge Opening: 20-50mm
High Light:

high pressure mill crusher

,

5 rollers mill crusher

,

raymond roll mill crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KL-DG100
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher Single Cylinder Hydraulic Pressure Limestone Cone Stone Crushe



Outstanding Advantages

1. Simple structure, strong reliability, easy maintenance, less money spent on operation.

2. Large production capacity, high crushing efficiency and low energy consumption.

3. Combination of various cavities, adapting to the needs of a variety of particle size

4. Long life liner

5. Rolling mortar wall does not need packing, quick and easy to replace.

6.PLC+touch screen automatic control system ensures the safe operation of the equipment.

Product Description

Single Cylinder Cone Crusher

Single Cylinder Cone Crusher is widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.

SC(S) series single-cylinder hydraulic cone crusher is developed by adopting advanced crushing technology, integrating mechanical, hydraulic, electrical and intelligent control technologies. The new crusher structure, optimized laminar crushing cavity and fully intelligent automatic control system make SC(S) series single-cylinder hydraulic cone crusher have the performance characteristics that traditional cone crusher does not have. It can be widely used in medium crushing, fine crushing and ultra-fine crushing.

Widely used in metallurgy, construction, cement, water conservancy, highway, railroad, mineral processing and other fields, with the role of medium crushing, fine crushing, ultra-fine crushing.

Single-cylinder cone crusher generally has high crushing efficiency, simple operation, low operating costs, energy saving, green environmental protection, easy maintenance, etc., while the crushed material particle size is excellent, the quality is more excellent, so it is quite recognized and favored by the users in the industry, especially by the metal mines, construction of sand and gravel processing plant is highly sought after, becoming one of the sought-after equipment in the industry.

Model Cavities Feeding Size(mm) Adjusting Range of Discharge Opening (mm) Capacity(t/h) Power(kw)
KL-DG100 Coarse 200 20-50 80-190 75-90
Medium 150 16-40 60-125
Fine 50 10-30 40-100
KL-DG200 Coarse 250 20-70 160-280 132-160
Medium 220 16-50 120-230
Fine 70 10-30 100-210
KL-DG300 Coarse 300 30-80 260-650 220-250
Medium 240 20-60 200-400
Fine 100 16-30 150-300
KL-DG400 Coarse 400 35-100 350-750 250-315
Medium 300 25-70 260-500
Fine 150 18-40 180-370
KL-DG500 Coarse 500 40-120 480-1050 280-315
Medium 350 30-80 335-900
Fine 160 20-50 220-680



Product details

  • In terms of crushing performance, in general, the multi-cylinder hydraulic cone crusher is higher, its crushing force and crushing ratio are larger, the discharge adjusting range is wider, greater flexibility in adjusting the product grade.
  • It is superior to single-cylinder cone crusher in the performance and quality of crushed products.
  • However, whether single or multiple cylinders are used in the entire process depends on the entire process layout.
  • The multi-cylinder hydraulic cone crusher is used to reduce the number of crushing stages and reduce investment. The needle-like content is generally below 15%.
