Mill Crusher Stone Machinery Multi-blade Block Brick Cutting Machine

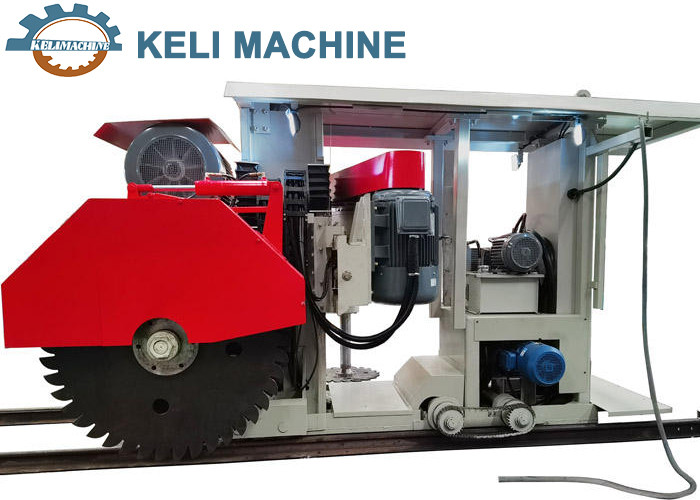

Sandstone Quarry Cutting Machine
KL-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
Main Features
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.
| TECHNICAL DATA | |||
| Power of Motor | Vertical | Kw | 75 |
| Horizontal | Kw | 45 | |
| Rail | Kw | 5.5 | |
| Main Performance Parameters | Moving speed (forward & backward) | m/min | 10-45 |
| Max distance of cylinder lifting | mm | 700 | |
| Max cutting depth | mm | 520 | |
| Blade | Diameter of the vertical | mm | 1330 |
| Diameter of the horizontal | mm | 600 | |
| Thickness | mm | 11.5 | |
