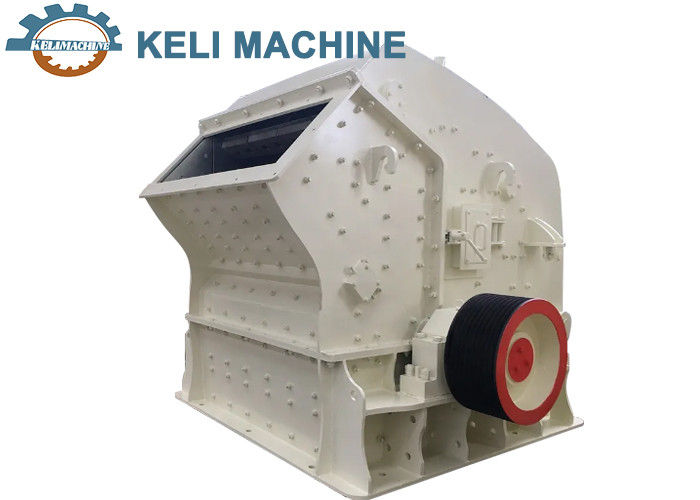

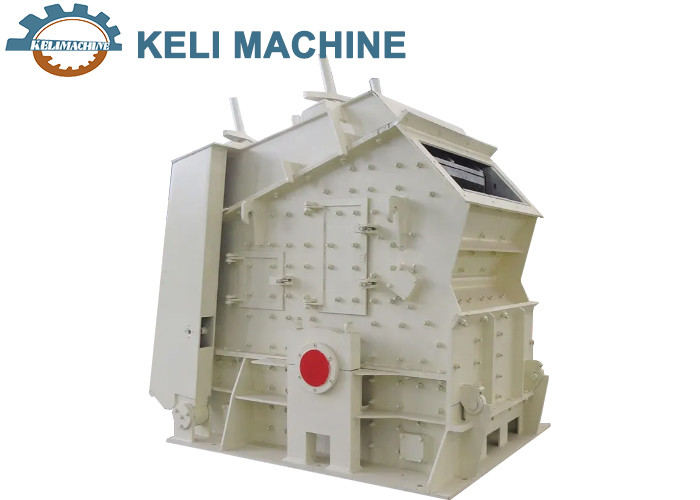

Mill Crusher Limestone Gravel Clay Rock Stone Crushing Machine
| Model | Rotor size (mm) |
Feeder opening size (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Power (kw) |
Overall dimension (mm) |
| KL-PF-1007 | φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| KL-PF-1010 | φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| KL-PF-1210 | φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| KL-PF-1214 | φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| KL-PF-1315 | φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| KL-PF-1320 | φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| KL-PF-1520 | φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| KL-PF-1820 | φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete ,etc.)With max feed size less than 500mm and compression strength less than 350Mpa. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.
Combining outstanding manufacturing process and accurate analytic technique, European Type Impact Crusher has been launched to market. This machine takes advantages of safety operation and large carrying capacity, particularly, the semi automatic adjusting device highlights intellectualization and advancement.
It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.
Working principle
Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.
KL-PF impact crusher can process many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP(such as limestone, gypsum, concrete, etc.). The adoption of no-board connection and hydraulic valve not only reduces the customer's operation cost, but also improves the production efficiency. Finished products are cubic without tension or cracks and the shape is quite good.
Outstanding Advantages
1. High energy saving
Large feed opening, high crushing cavity, adapt to the high hardness of the material, large size, the product less stone powder
2.Good particle size
The gap between the impact plate and the hammer can be easily adjusted, effectively controlling the particle size of the discharged material, and the particle shape is good.
3.Structure
Compact structure, strong rigidity, large rotor moment of inertia.
4. High comprehensive efficiency
High chrome plate hammer, anti-impact, anti-wear, high impact force.
