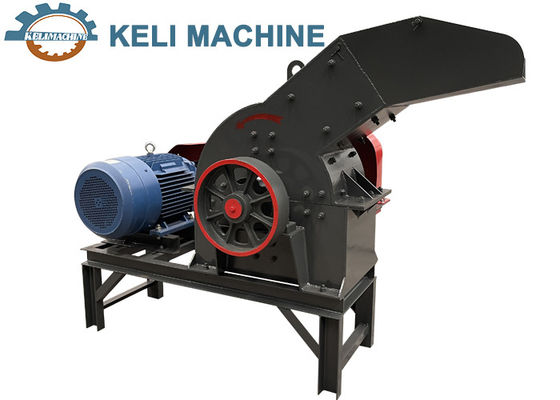

The hammer crusher is composed of a variety of parts including an upper casing, a lower casing, a transmission member, a hammer head, a counter lining plate and a sieve plate
The main working component is a rotor with a hammer, also known as a hammer. The rotor itself consists of a main shaft, disc, pin and hammer. The motor will drive the rotor to rotate at a high speed in the crushing chamber.
Materials are fed into the machine from the upper feed port and are crushed by the impact, shearing and grinding action of the high-speed moving hammer. The size of the pulverized material that is smaller than the mesh size is discharged through the sieve plate at the bottom of the rotor. Coarse-grained material with a size larger than the mesh size is retained on the sieve plate and is continuously struck and ground by the hammer until it is discharged through the sieve plate that is placed outside the machine.
| Model | PC300x200 |
| Feed particle size (mm) | 100 |
| Discharge particle size (mm) | 8 |
| Productivity(t/h) | 1-5 |
| Number of motor poles | 4 |
| Power(kw) | 5.5 |
| Dimensions(mm) | 630*380*630 |
| Machine weight(kg) | 200 |
This machine is mainly used to crush medium-hard materials such as coal, limestone, slag and various types of ores and rocks found in the construction, electric power, chemical, metallurgy, and geological industries, making it ideal for industrial units.
Its range of applications include medium crushing, coarse crushing, and other medium-hard materials.
