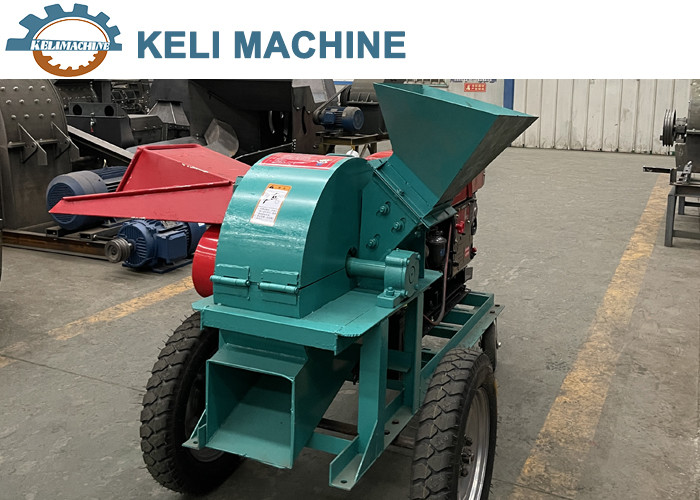

KL-900 Square Mouth Mill Crusher 55 kw Power with Diesel Engine
| Square mouth crusher | Carbon-structured steel hammer: Made of carbon-structured steel, it can crush wood chips multiple times to improve the crushing rate. The hammer can be used on both sides, and the hammer can be replaced by itself, but only in the same position. | ||||||
| High-precision bearings: The main part is handled by dynamic balancing equipment, and the weight error in each direction of the machine is very small, which ensures the smooth operation of the machine, improves production efficiency, prolongs the service life, low cost, and high output. | |||||||
| Alloy moving knife: Alloy knife is used, which is tough, wear-resistant, sharp cutting, not easy to rust, corrosion-resistant, long service life, and improves the efficiency of the pulverizer. | |||||||
| Thickened cutterhead: It is composed of thickened steel plates, which changes the original fragile characteristics and increases the service life of the machine. The entire cutterhead operates smoothly and plays the role of secondary crushing. | |||||||
| Model | KL-420 | KL-500 | KL-600 | KL-700 | KL-900 | KL-1000 | |
|
Material port diameter |
(mm) | Φ150*150 | Φ200*200 | Φ250*250 | Φ300*300 | Φ350*350 | Φ400*400 |
|
Machine weight |
(kg) | 130 | 210 | 320 | 450 | 650 | 800 |
| Processing efficiency | (kg) | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
|
Number of blades |
(alloy) | 4 | 4 | 4 | 6 | 8 | 8 |
|
Diesel horsepower |
(hp) | 15 | 25 | 32 | 45 | 50 | 55 |
|
Spindle speed |
(r/min) | 2800 | 2800 | 2700 | 2100 | 2000 | 2000 |
|
Power |
(kw) | 11 | 18.5 | 30 | 37 | 55 | 75+7.5 |
