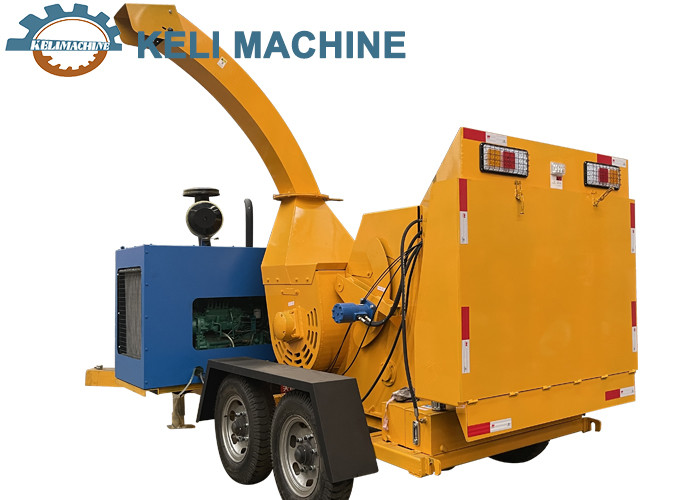

HY-6145 Mill Crusher Branch Crusher with 75kw Diesel Engine Power part
| Product Feature | |
| Hydraulic feeding system | |
|
|
| Brand car hub wheel | |
|
|
| Manganese steel hob | |
|
|
|
|
| High strength tooth roll | |
|
| Main technical parameters | |
| Model | HY-6145 |
| Cutter diameter(mm) | 500 |
| Machine weight(kg) | 2800 |
| Discharge height(m) | 4 |
| Start-up method | Electric start |
| Host speed(r/min) | 1800 |
| Mobile form |
Foldable hand crank jack, slipper type |
| Matching power | R4105Z Turbocharged (74kw) |
| Cutter length(mm) | 230 |
| Productivity(t/h) | 3-5 |
| Generator power(W) | 600 |
| Feeding throat size(mm) | 450*380 |
| Cutting System | Rolling longitudinal cutting |
| Battery specifications | 24V 105AH |
| Discharge system | Free 360° rotation with automatic injection discharge |
| Number of cutters |
Dynamic knife 6 pieces fixed knife 1 piece |
| Feeding stall | In-Stop-Reverse, 3 gears manual control |
| Feeding roller diameter(mm) | 600 |
| Application | |
|
|
|
|
Product Detail

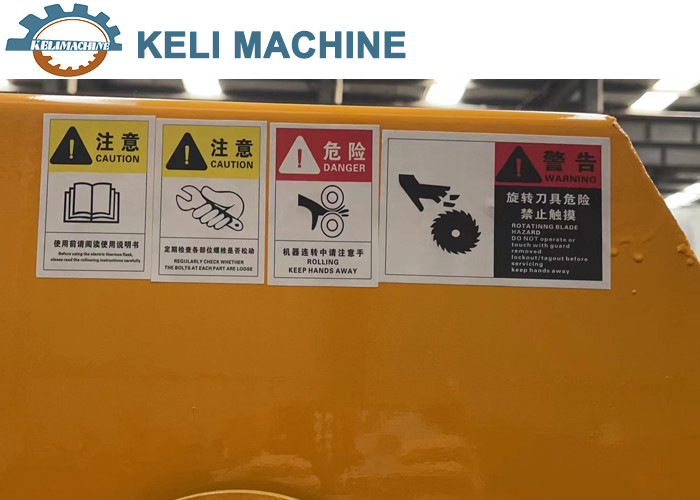

Safe Operating Procedures
Operators must be familiar with the performance, usage and working procedures of the entire equipment.
Operators must wear labor protection supplies when working, and operating tools must be safe and reliable.
If the equipment is installed outdoors, the surrounding environment must be checked, fire prevention and rainproof measures must be taken, and the temporary line must be safe and reliable.
During the working process, the movement is required to be stable, and it is strictly forbidden to operate with iron tools to prevent personal safety and equipment accidents.
During the period, you must concentrate, and it is strictly forbidden to hang around, leave the post, and fight. There must be a special person to start the machine and be responsible for supervising the production process.
Check the operation of the equipment at any time during work, and stop the machine immediately for inspection if there is any abnormality, and troubleshoot.
Check the looseness of fasteners before and after each shift, and deal with it in time. Before and after each shift, the bearing chamber needs to be filled with oil.
