Mill Crusher Fast Roll 75 KW KDG80/80-S Superfine Roller Mill

1set
MOQ
Negotiable
Price

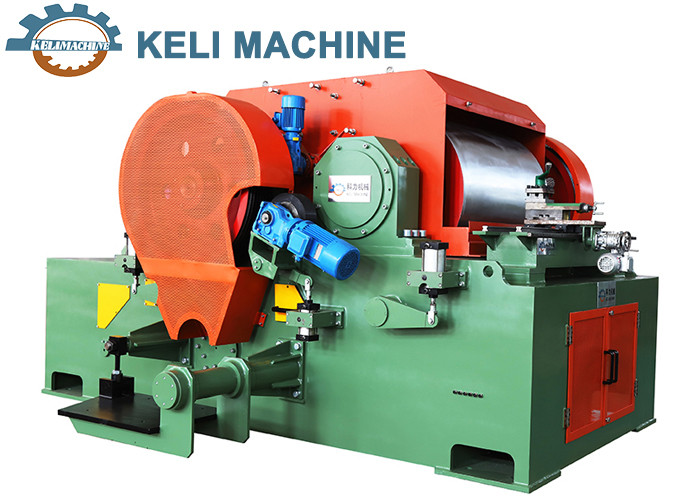

Mill Crusher Fast Roll 75 KW KDG80/80-S Superfine Roller Mill
Features Gallery Product Description Request A Quote
Features
Specifications
Start Mode: Soft Starting
Fast Roll: 75kw
Weight: 18000kg
Slow Roll: 55kw
Shape Size: 4.0*4.0*2.2m
Type: Superfine Roller Mill
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

OEM hammer mill crusher

,

ODM hammer mill crusher

,

electric laboratory crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KDG80/80-S
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher Fast Roll 75 KW KDG80/80-S Superfine Roller Mill



Superfine roller mill

Super fine roller mill is designed for ceramics, cement, chemical industry, electric power, miners, metallurgy, building materials, refractory materials, coal mines and other fields and professional equipment, its characteristics is as follows:

  • Stable performance, durable, simple structure, small space, convenient operation, easy maintenance.
  • It is equipped with dustproof board, which has good sealing performance, avoiding the small material flying after being broken, with less dust and low working noise, and the working environment is greatly improved.
  • Equipped with hanging board device, it is not easy to stick the material on the roller ring and improve the crushing precision.

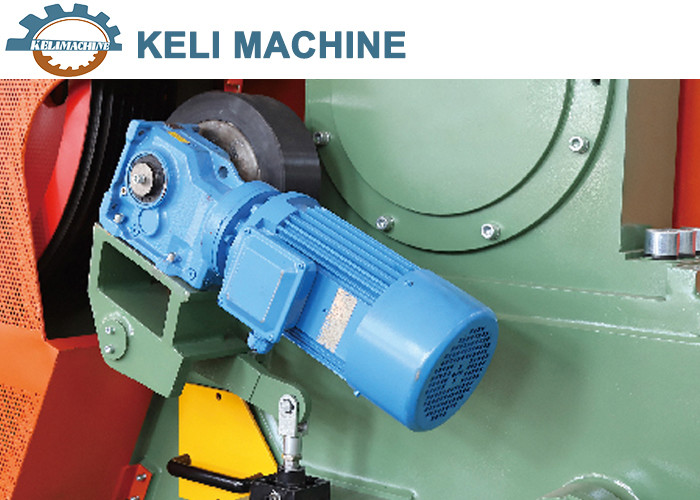

  • Easy to replace the roller ring, equipped with the roller ring turning device, can turn the roller ring after wear, improve the crushing fineness and yield; The turning device is driven by an independent motor to save energy.
  • The gap between rollers is measured by the electronic ruler linear displacement sensor. It is easy to adjust the gap between rollers between 0.5mm and 1mm. After the gap is adjusted according to the requirements of crushing granularity, the crushing granularity can be controlled reliably.
  • Hydraulic pressure device is adopted, with large pressure and good crushing effect.



Superfine roller mill
Model Roll ring size(mm) Slow roll(KW) Fast roll(KW) Weight(KG) Shape size(m) Start Mode HRC
Length Diameter
KDG12/10-S 1200 1000 90 132 31000 4.5*4.5*2.5 Soft Starting 58-62
KDG80/80-S 800 800 55 75 18000 4.0*4.0*2.2


Super fine roller mill is designed for ceramics, chemical industry, cement, electric power, refractory materials, miners, metallurgy, building materials, coal mines and other fields and professional equipment, its characteristics is as follows:

  • Equipped with hanging board device, it is not easy to stick the material on the roller ring and improve the crushing precision.
  • Stable performance, durable, simple structure, small space, convenient operation, easy maintenance.
  • Hydraulic pressure device is adopted, with large pressure and good crushing effect.
  • It is equipped with dustproof board, which has good sealing performance, avoiding the small material flying after being broken, with less dust and low working noise, and the working environment is greatly improved.
  • Easy to replace the roller ring, equipped with the roller ring turning device, can turn the roller ring after wear, improve the crushing fineness and yield; The turning device is driven by an independent motor to save energy.
  • The gap between rollers is measured by the electronic ruler linear displacement sensor. It is easy to adjust the gap between rollers between 0.5mm and 1mm. After the gap is adjusted according to the requirements of crushing granularity, the crushing granularity can be controlled reliably.



Mill Crusher Fast Roll 75 KW KDG80/80-S Superfine Roller Mill 0

Company
  • Keli Machine Co., Ltd. is a professional enterprise that integrates mechanical design and manufacturing.
  • The company has over 20 years of experience in brick and tile machinery repair, including senior engineers, scientific and technological personnel, and multiple key employees.
  • Yixing Keli always adheres to the business philosophy of "everything is for the glory of customers, we pursue excellence, create quality, and grow in profitability", and does a solid job in providing pre-sales, during sales, and after-sales service to customers, providing warm services.
  • Our service network reaches every place where our products are sold. As long as customers have any requirements, our service personnel will provide satisfactory answers to customers within 48 hours.
