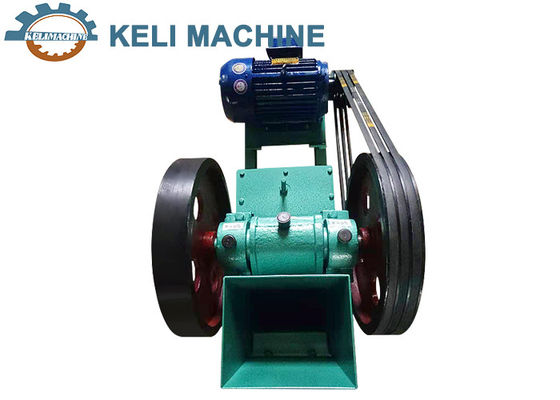

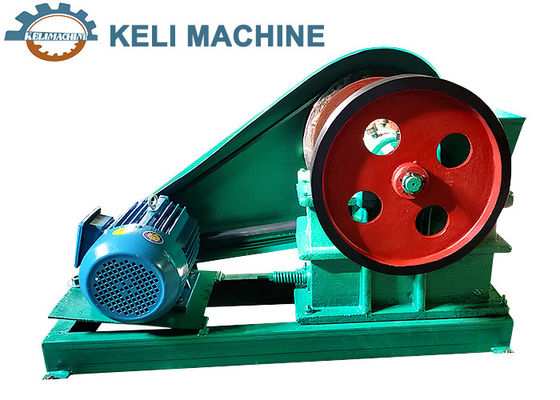

Mill Crusher KL-100x60 Laboratory Crusher 45-550kg/h Productivity

Mill Crusher KL-100x60 Laboratory Crusher 45-550kg/h Productivity
Features Gallery Product Description Request A Quote
Discharge Particle Size: 3-10mm
Motor Power: 1.5kw
Productivity: 45-550kg/h
Feed Particle Size: 50mm
Type: Laboratory Crusher
Dimensions: 700*380*480mm
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

OEM hammer mill crusher


ODM hammer mill crusher


electric laboratory crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KL-100x60
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher KL-100x60 Laboratory Crusher 45-550kg/h Productivity


The main technical parameters

Model KL-100x60 KL-100x150 KL-150x125 KL-100x125 KL-Disc
Feed particle size (mm) 50 100*150 125*150 100*125 175mm(diameter)
Maximum feed particle size (mm) 50 80 120 100 2-3
Discharge particle size (mm) 3-10 5-25 3-25 2-35 0.15-1
Motor Power (kw) 1.5 2.2 3 3 1.1
Rotating speed (r/min) 600 368 368 375 78
Productivity (kg/h) 45-550 480-1800 500-3000 30-2000 25
Voltage (v) 380 380 380 380 380
Dimensions (mm) 700*380*480 700*380*480 1000*450*520 1000*550*580 690*465*400
Machine weight (kg) 120 120 280 250 95


Laboratory crusher

  1. Adjusting screw: solid iron adjusting screw, good feel, strong and durable.
  2. Branded bearings: The bearings adopt well-known brand products, which have better concentricity and are more durable.
  3. Heightened and thickened base: The base is all made of thickened and heightened channel steel, which is heavier and more stable in operation.
  4. Pig iron side plates: The side plates on both sides of the bearing are all made of pig iron, which has high strength and high temperature resistance, and can prevent high temperature lubricating oil from splashing out.

Laboratory crusher, also known as laboratory crusher, is also known as ore sample crusher, ore sample crusher, laboratory sample crusher, or laboratory sample crusher. The laboratory crusher equipment is mainly divided into three categories: laboratory sealed jaw crusher, laboratory sealed hammer crusher, and laboratory sealed roller crusher. Mainly used for crushing various medium hardness rocks or ores, it is an important equipment in laboratories and laboratories in industries such as metallurgy, geology, building materials, and chemical engineering.


Introduce separately

Laboratory sealed jaw crusher can crush various ores and raw materials with compressive strength ≤ 24kg/cm2 for coarse and medium crushing; Large crushing ratio, uniform particle size, and adjustable discharge particle size; The sealed model effectively avoids dust leakage during the crushing process, does not pollute the environment, and is beneficial to the health of operators.

The laboratory sealed hammer crusher is a new generation of crushing equipment that can quickly crush various materials and is very suitable for departments such as power, coal, metallurgy, mining, chemical engineering, environmental protection, geology, scientific research, etc.

The laboratory sealed roller crusher significantly reduces noise and improves crushing efficiency. Capable of crushing and finely crushing various minerals. The sealed type has the advantages of low sample loss rate, no dust leakage, and no environmental pollution, which is beneficial for the health of operators.
