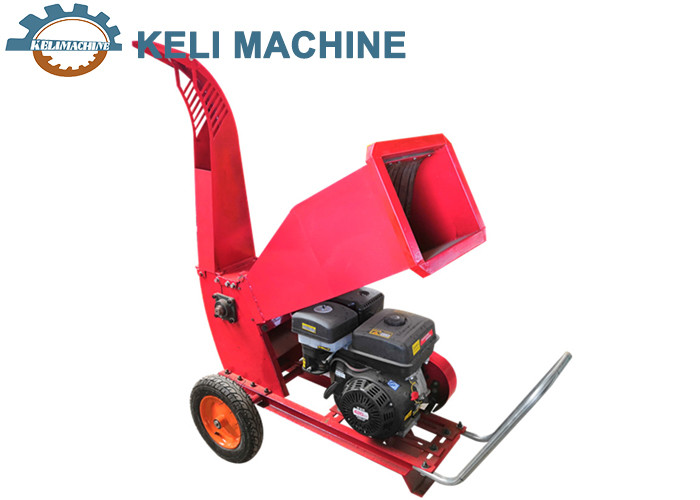

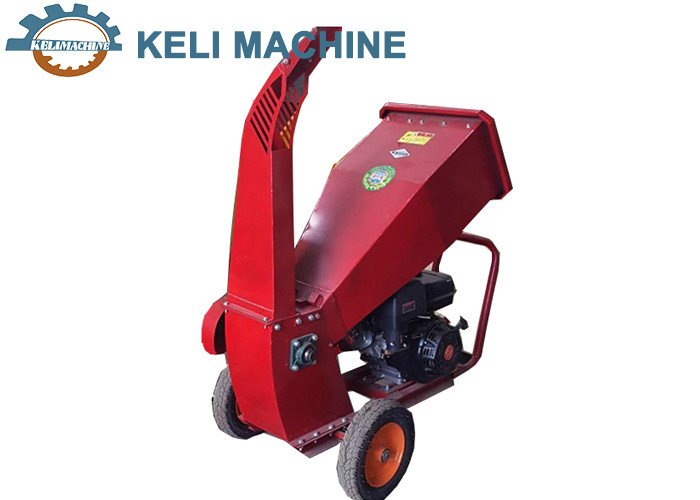

Mill Crusher Hand Pull Recoil Start Hand Push Pulverizer Branch Diameter 3-100mm
Main technical parameters | |
| Model | KL-701 gasoline (hand start) |
| Branch diameter(mm) | 3-100 |
| Paring knife(mm) | 5.5*300 |
| Cutter speed(rpm) | 2700 |
| Outlet | Upper discharge |
| Engine model | Single-cylinder four-stroke air-cooled engine192F |
| Engine capacity(cc) | 420 |
| Output Power(HP) | 18 |
| Diesel capacity(L) | 6.5 |
| Oil capacity(L) | 1.1 |
| Start method | Hand pull recoil start |
| Fuel type | 92#Unleaded gasoline |
| G.W/N.W(kgs) | 180/160 |
| Package Size(cm) | 122*58*96 |
Features | |
| |
| Other Models | |||||
| Model | KL-701-1E diesel (electric start) | KL-703 gasoline (hand start) | KL-703-1E diesel (electric start) | KL-702 (power optional) | KL-704C gasoline (hand start) |
| Branch diameter(mm) | 3-100 | 3-150 | 3-150 | 3-120 | 3-60 |
| Paring knife(mm) | 5.5*300 | 5.5*300 | 5.5*300 | 7.5*56*300 | 5.5*300 |
| Cutter speed(rpm) | 3000 | 3600 | 3000 | 2600 | 2800 |
| Outlet | Upper discharge | Upper discharge | Upper discharge | Upper discharge + bottom discharge | Upper discharge |
| Engine model | 188F diesel engine | Single-cylinder four-stroke air-cooled engine192F | 188F diesel engine | 192F Gasoline and diesel/7.5kw motor | Single-cylinder four-stroke air-cooled engine170F |
| Engine capacity(cc) | 389 | 420 | 430cc/7.5kw | 420cc/7.5kw | 208 |
| Output Power(HP) | 13 | 18 | 13 | 18 | 7.5 |
| Diesel capacity(L) | 5.5 | 6.5 | 6.5 | 6.5 | 3.6 |
| Oil capacity(L) | 1.5 | 1.1 | 1.1 | 1.1 | 0.6 |
| Start method | Electric start | Hand pull recoil start | Electronic ignition | Electronic ignition | Hand pull recoil start |
| Fuel type | 0#diesel fuel | 92#Unleaded gasoline | 0#diesel fuel | 0#diesel fuel /92#gasoline | 92#gasoline |
| G.W/N.W(kgs) | 200/180 | 200/190 | 200/190 | 240/220 | 130/120 |
| Package Size(cm) | 122*58*96 | 155*80*125 | 155*80*125 | 122*58*96 | 113*41*82 |
