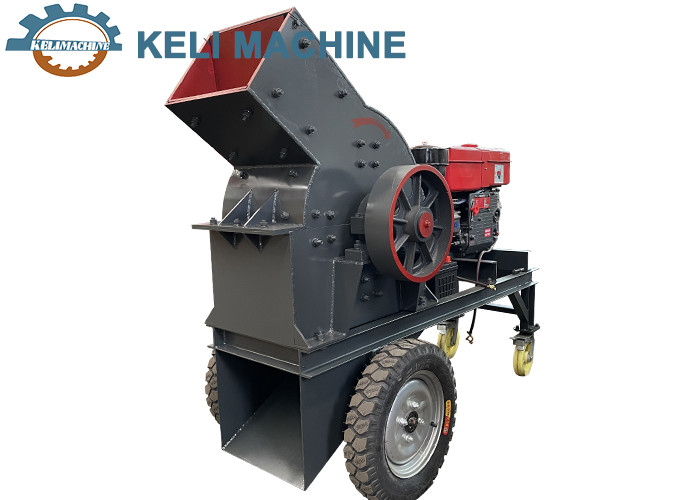

Mill Crusher PC400x300 Discharge Particle Size 8mm Hammer Crusher
The main technical parameters
| Model | PC400x300 | |
| Feed particle size | mm | 200 |
| Discharge particle size | mm | 25 |
| Productivity | t/h | 5-10 |
| Number of motor poles | 4 | |
| Power | kw | 11 |
| Dimensions | mm | 900*670*860 |
| Machine weight | kg | 800 |
|
Scope of application |
||
|
It is mainly suitable for medium crushing, coal, limestone, slag and various medium-hard ores and rocks in construction, chemical industry, electric power, metallurgy, coarse crushing, geological and other industries and industrial units. |
||
| Characteristic |
Train wheel forging hammer head
|
|
Branded bearings
|
|
|
Double-layer casing
|
|
|
Wear-resistant liner and sieve bars
|
Features:
Hammer crushers mainly rely on impact energy to complete material crushing operations. When the hammer crusher is working, the motor drives the rotor to rotate at high speed, and the material evenly enters the crusher chamber. The high-speed rotating hammer head impacts, cuts, and tears the material, causing it to be broken. At the same time, the gravity of the material itself causes the material to rush from the high-speed rotating hammer head towards the baffle and screen strip inside the frame. Materials larger than the size of the screen hole are prevented from remaining on the screen plate and continue to be hit and ground by the hammer, Until it is crushed to the required discharge particle size and finally discharged from the machine through a sieve plate.
Other Model
| Model | PC300x200 | PC600x400 | PC800x600 | PC1000x800 | PC1000x1000 |
| Feed particle size (mm) | 100 | 250 | 250 | 350 | 350 |
| Discharge particle size (mm) | 8 | 30 | 35 | 35 | 35 |
| Productivity(t/h) | 1-5 | 10-22 | 18-40 | 25-50 | 30-55 |
| Number of motor poles | 4 | 4 | 4 | 4 | 6 |
| Power(kw) | 5.5 | 11-22 | 30-55 | 75 | 90 |
| Dimensions(mm) | 630*380*630 | 1200*1050*1200 | 1310*1180*1310 | 1600*1390*1575 | 1800*1590*1775 |
| Machine weight(kg) | 200 | 1500 | 3200 | 4300 | 8000 |
