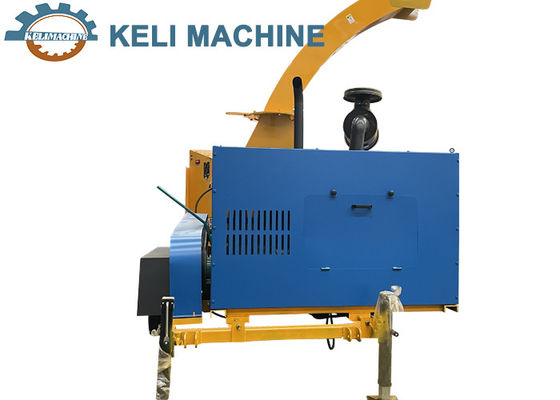

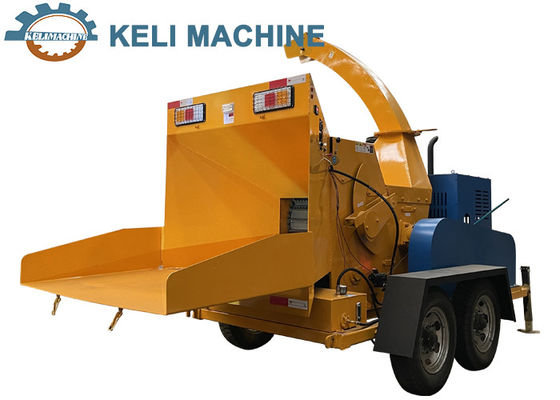

Mill Crusher HY-6145 Electric Start Branch Crusher Productivity 3-5t/h

Mill Crusher HY-6145 Electric Start Branch Crusher Productivity 3-5t/h
Features Gallery Product Description Request A Quote
Type: Electric Start Branch Crushe
Matching Power: R4105ZP Turbocharged
Cutter Length: 500mm
Start-up Method: Electric Start
Number Of Cutters: Dynamic Knife 3 Pieces Fixed Knife 1 Piece
Feeding Roller Diameter: 600mm
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

OEM hammer mill crusher


ODM hammer mill crusher


electric laboratory crusher

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: HY-6145
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Mill Crusher HY-6145 Electric Start Branch Crusher Productivity 3-5t/h


Model HY-6145
Cutter diameter(mm) mm 500
Matching power R4105ZP Turbocharged (74kw)
Start-up method Electric start
Host speed r/min 1800
Number of cutters

Dynamic knife 3 pieces

fixed knife 1 piece

Cutter length mm 230
Feeding roller diameter mm 600
Feeding stall In-Stop-Reverse, 3 gears manual control
Feeding throat size mm 450*380
generator power W 600
Battery specifications 24V 105AH
Discharge system Free 360° rotation with automatic injection discharge
Cutting System Rolling longitudinal cutting
Productivity t/h 3-5
Mobile form Foldable hand crank jack, slipper type
Discharge height m 4
Machine weight kg 2800

Scope of application

  • It is widely used in various occasions with strong adaptability.
  • It is mainly used for cattle and sheep feed, returning to the field for fertilizer, edible fungus base material, Buddha incense factory, mechanism charcoal, wood factory, mushroom cultivation.

Performance characteristics

  1. Traction type mobile, fearless of a variety of terrain, strong adaptability
  2. Air flow impact, strong power, complete crushing
  3. Real material, solid and durable, beautiful appearance
  4. Reasonable structure, simple operation, 360° automatic material spray


Main structure: power part, airframe, feeding system and hydraulic system.

  • Power part: 75kw diesel engine
  • Airframe: chassis, cutting chamber, bearing chamber, traction part.
  • Frame: high-quality steel welding, laser cutting, boring and milling.
  • Rotor: The rotor shaft and flying knife (high-quality carbon structural steel) pass the balance test to ensure the overall stability of the system during operation.
  • Feeding system: up and down feeding roller (high-quality carbon structural steel) and hydraulic motor
  • Hydraulic system: gear pump, hydraulic orbital motor, manual combination valve, solenoid valve

Mill Crusher HY-6145 Electric Start Branch Crusher Productivity 3-5t/h 0


Our company is a manufacturer engaged in the production of biomass wood crushing equipment, drum and disc chippers, chopping machines, peeling machines, and other branch shredders. The models are complete and different products can be configured according to customer needs. Our products are not only best-selling nationwide, but also exported to Southeast Asia, the Middle East, Europe and America and other parts of the world. This product combines the advantages of various cutting machines and fully utilizes cutting and cutting theories to develop and develop. Especially in terms of safety performance, it has greatly improved work efficiency.

The branch crusher is mainly used for cutting small logs, branches, small diameter wood, wood cutting residues, shrubs, and can be used in the material preparation section of industrial production such as papermaking, density board, biomass power plants, etc. If the fed wood is too large or too hard, or if the diesel engine load is too high, the feeding roller can be manually controlled to reverse. This product is sturdy and durable, with high production capacity, low energy consumption, uniform material cutting, and low noise during use, simple operation, and convenient maintenance.
