Mill Crusher Laboratory Crusher Maximum Feed Particle Size 50mm

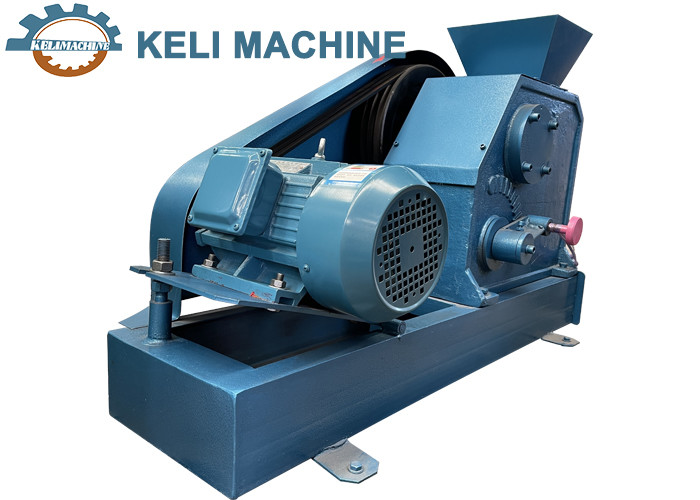

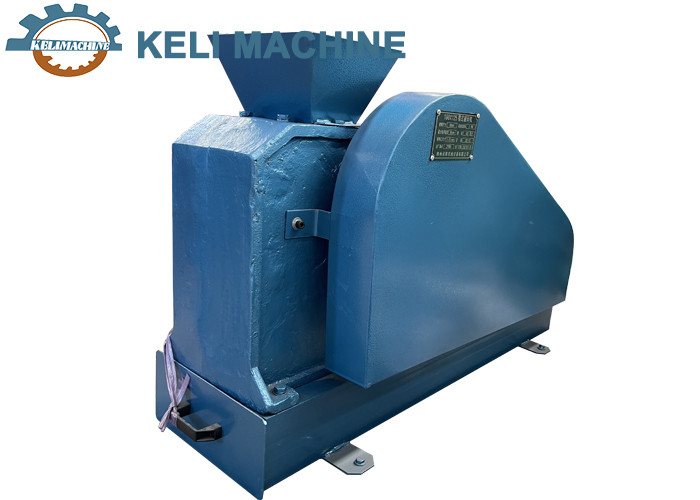

Laboratory crusher
Heightened and thickened base: The base is all made of thickened and heightened channel steel, which is heavier and more stable in operation.
Branded bearings: The bearings adopt well-known brand products, which have better concentricity and are more durable.
Pig iron side plates: The side plates on both sides of the bearing are all made of pig iron, which has high strength and high temperature resistance, and can prevent high temperature lubricating oil from splashing out.
Adjusting screw: solid iron adjusting screw, good feel, strong and durable.
Features:
Fully sealed design, no dust pollution
Uniform output, no flakes
Simple structure, reliable operation and easy operation
Easy replacement of parts and easy maintenance
Scope of application
It is mainly suitable for medium crushing, coarse crushing, coal, limestone, slag and various medium-hard ores and rocks in construction, electric power, chemical industry, metallurgy, geological and other industries and industrial units.
The main technical parameters
| model | 100x60 | 100x150 | 150x125 | 100x125 | Disc |
| Feed particle size(mm) | 50 | 100*150 | 125*150 | 100*125 | 175mm(diameter) |
| Maximum feed particle size(mm) | 50 | 80 | 120 | 100 | 2-3 |
| Discharge particle size(mm) | 3-10 | 5-25 | 3-25 | 2-35 | 0.15-1 |
| Motor Power(kw) | 1.5 | 2.2 | 3 | 3 | 1.1 |
| Rotating speed(r/min) | 600 | 368 | 368 | 375 | 78 |
| productivity(kg/h) | 45-550 | 480-1800 | 500-3000 | 30-2000 | 25 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 |
| Dimensions(mm) | 700*380*480 | 700*380*480 | 1000*450*520 | 1000*550*580 | 690*465*400 |
| machine weight(kg) | 120 | 120 | 280 | 250 | 95 |
