Mill Crusher PC300x200 Hammer Crusher Feed Particle Size 100mm

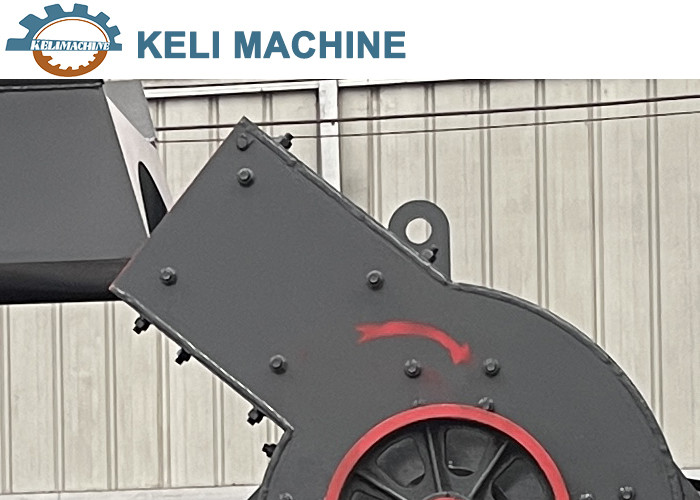

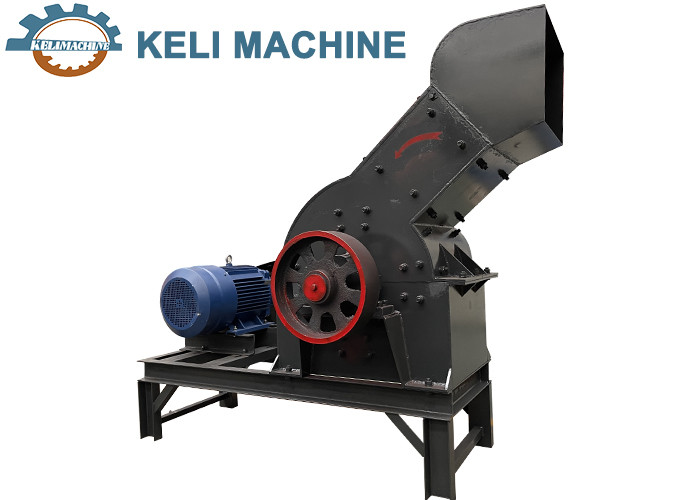

Hammer crusher
Train wheel forging hammer head: The hammer head adopts train wheel forging hammer head, which is more wear-resistant and has a longer service life.
Branded bearings: The bearings adopt well-known brand products, which have better concentricity and are more durable.
Double-layer casing: The casing is made of double-layer steel plate, which adopts laser cutting technology, which is beautiful and durable.
Wear-resistant liner and sieve bars: wear-resistant, impact-resistant and high-strength materials are used to effectively protect the casing and prolong the service life. The sieve bar can adjust the output granularity according to the demand.
Features:
Fully sealed design, no dust pollution
Uniform output, no flakes
Simple structure, reliable operation and easy operation
Easy replacement of parts and easy maintenance
Scope of application:
It is mainly suitable for medium crushing, coarse crushing, coal, limestone, slag and various medium-hard ores and rocks in construction, electric power, chemical industry, metallurgy, geological and other industries and industrial units.
The main technical parameters
| model | PC300x200 | PC400x300 | PC600x400 | PC800x600 | PC1000x800 | PC1000x1000 |
| Feed particle size (mm) | 100 | 200 | 250 | 250 | 350 | 350 |
| Discharge particle size (mm) | 8 | 25 | 30 | 35 | 35 | 35 |
| Productivity(t/h) | 1-5 | 5-10 | 10-22 | 18-40 | 25-50 | 30-55 |
| Number of motor poles | 4 | 4 | 4 | 4 | 4 | 6 |
| power(kw) | 5.5 | 11 | 11-22 | 30-55 | 75 | 90 |
| Dimensions(mm) |
630*380* 630 |
900*670* 860 |
1200*1050* 1200 |
1310*1180* 1310 |
1600*1390* 1575 |
1800*1590* 1775 |
| machine weight(kg) | 200 | 800 | 1500 | 3200 | 4300 | 8000 |
|
