22KW Cement Tile Making Machine PLC Control Tiles Forming Line

22KW Cement Tile Making Machine PLC Control Tiles Forming Line
Features Gallery Product Description Request A Quote
Type: Concrete Roofing Tiles Forming Line
Plate: 1.2mm
Roll Material: Gcr15
Material: Stainless Steel
Control System: PLC
Number Of Molding Passes: 22
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

22kw tile manufacturing machine


3kw cement tile making machine


1.2mm cement tile making machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 10sets/month.
Product Description

Product Description:

The steel mold enters the forming machine head with the mechanical transmission mode, after the automatic fuel injection system.

Then, the mixed concrete is pre-formed on the steel mold, which is then cut into a single piece of cement tile.

At that point, the tile is chipped, colored, polished and mounted on the rack for curing, which takes 10 - 12 hours. After that, it is time for demolding and completing the production process.

By replacing the different extrusion heads and molds, different types of roof tile can also be produced.



Roof Tile Making Machine

This roof tile making machine adopts PLC automatic control and features a man-machine interface for a more reliable and convenient performance. Its quick molding speed and high output make it the ideal solution for construction needs: its molding speed can reach 8 pieces per minute, powered by a full hydraulic and pneumatic system.

Slurry concrete is also pressed by a pressure filtration type mold, resulting in final products that are perfect in structure and design. They are big in density, high in strength, and precise in size, offering the perfect solution for any building project.

The roof tile making machine is multi-functional and can make various types of color tiles, including roof tiles, ridge tiles, edge tiles, drainage tile, and gutter tiles.


Technical Parameters:

Technical Parameters:

Plate: 1.2mm

Host power: 22KW
Number of molding passes: 22 channels add multiple sub-rollers to ensure no scratches on the surface of the profile.
Molding speed: 8-15 m / min
Cutting method: 3KW hydraulic cutting
Roll material: Gcr15 (high carbon chromium bearing steel, with high hardenability)
Quenching: 58-62 degrees
Control mode: PLC length control, length error +/- 1mm
Equipment base: welded with steel plate, upper iron plate gantry, working table with roller table

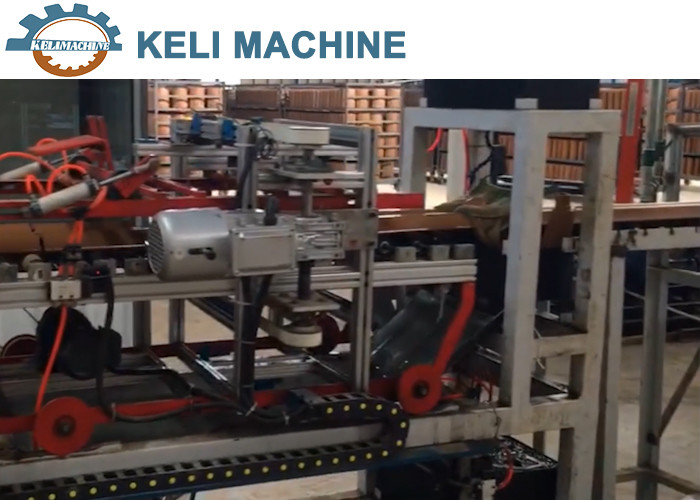

22KW Cement Tile Making Machine PLC Control Tiles Forming Line 0


The Automatic clay tile press machine is an easy to operate machine for producing various roof tiles, edge tiles and floor tiles. The raw material used is clay, soil, or mud, and the types of pressings are either mechanical or pneumatic.

The pneumatic press machine is able to achieve an impressive pressure of up to 20 Ton.


Support and Services:

Technical Support and Service for Tile Making Machine
  • Provide advice and support for installation, commissioning and use of tile making machines.
  • Provide professional consultation for customers on the use of tile making machines, production process, maintenance, etc.
  • Provide spare parts and accessories for tile making machines, as well as maintenance tools and equipment.
  • Provide regular maintenance and repair services for tile making machines.
  • Provide timely solutions to any problems encountered when using tile making machines.
  • Provide professional after-sales service and technical guidance.
