Automatic Interlocking Tiles Making Machine Cement Roof Tile Production Line

Automatic Interlocking Tiles Making Machine Cement Roof Tile Production Line
Features Gallery Product Description Request A Quote
Processing Type: Extruding
Product Name: Cement Roof Tile Forming Line
Application: Roofing Tiles Making
Molding Speed: 8-15 M / Min
Plate: 1.2mm
Quenching: 58-62 Degrees
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

15m/min automatic interlocking tiles making machine


8m/min automatic interlocking tiles making machine


22kw floor tiles making machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 10sets/month.
Product Description

Tile Making Machine Cement Roof Tile Forming Line Production Line

Product Description

  • Using mechanical transmission mode, the steel mold is sent into the forming machine head after the automatic fuel injection system.
  • The mixed concrete is preformed on the steel mold. After cutting into a single piece of cement tile, it is chipped, colored, polished, and mounted on the rack, curing (10-12 hours), demolding, and completing the production process.
  • Replace different extrusion heads and molds to produce different roof tiles.
  • Quick molding speed, high output, reliable performance. Adopting PLC automatic control. man-machine interface makes performance more reliable and more convenient. The molding speed can reach 8 pcs/min, with full hydraulic and pneumatic production.
  • Multi-usage. It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on.
  • Slurry concrete is pressed by pressure filtration type mould. Final product is perfect in structure and various in designs, big in density, and high in strength, precise in size, which can meet any building need.


​Technical Parameters

Plate 1.2mm
Host power 22KW
Control mode PLC length control, length error +/- 1mm
Molding speed 8-15m/min
Roll material Gcr15 (high carbon chromium bearing steel, with high hardenability)
Quenching 58-62 degrees
Number of molding passes 22 channels add multiple sub-rollers to ensure no scratches on the surface of the profile
Cutting method 3KW hydraulic cutting
Equipment base Welded with steel plate, upper iron plate gantry



Production Process

  1. Discharge
  2. Material leveling
  3. Hydraulic punching
  4. Sheet guiding
  5. Forming
  6. Cutting
  7. Receiving


Product Show

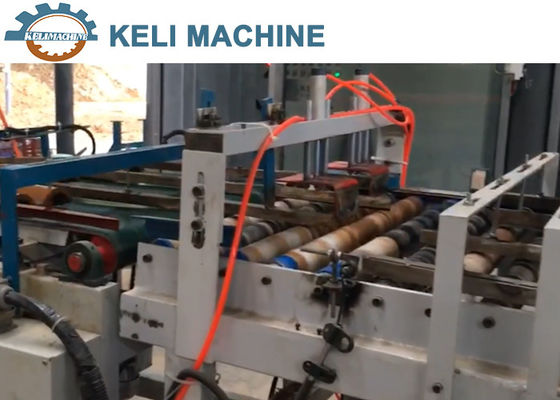

Automatic Interlocking Tiles Making Machine Cement Roof Tile Production Line 0
