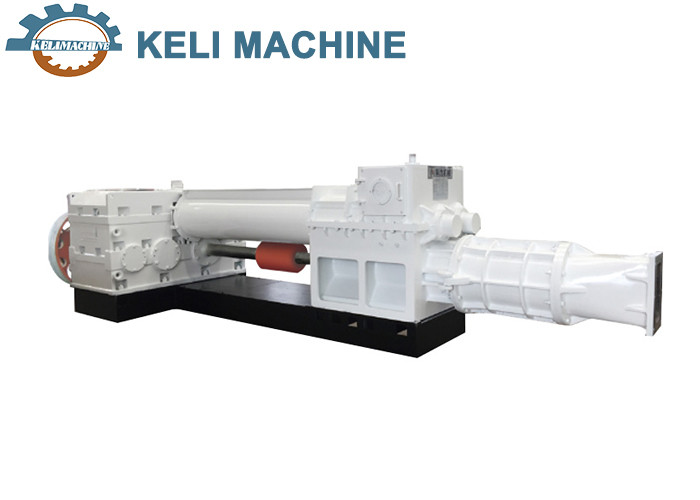

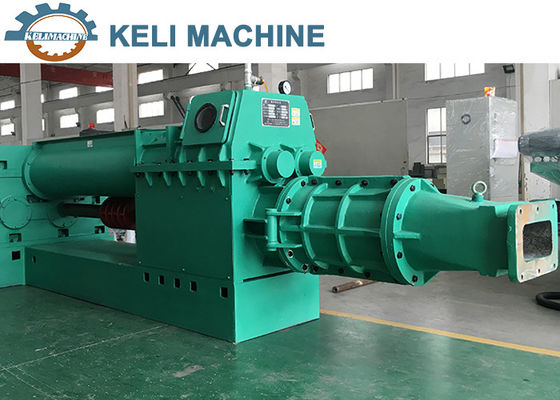

Vacuum Extruder Brick Making Machine Compact Structure Vacuum Extruder
Compact structure vacuum extruder (suitable for industries with low production demand, such as ceramics, low price)
This machine is an integrated vacuum sludge equipment.
Synchronous shunt drive through a clutch and reducer with a power, extrusion under the agitation, coordinated operation, extrusion of clay, shale, fly ash, coal gangue and other raw materials into various solid bricks, perforated bricks, hollow bricks
The brick raw materials which have been batched, stirred and rolled are further stirred (or added with steam), pumped, extruded, and formed into ordinary brick or hollow brick strips, and cut into various kinds by a cutting machine. Specifications of bricks. The extruder includes four parts: upper stage, lower stage, vacuum system and electric clutch system. The whole machine adopts all-steel welded structure, artificial aging treatment, high strength; the structure is more compact and simpler than the two-stage series.
Adopting domestic advanced axial pneumatic clutch for quick clutching and reliable operation
Soil plasticity index: more than 7 hollow bricks and more than 5 solid bricks.
The utility model has the advantages of large extrusion pressure, high vacuum, compact molding, pressure resistance, strong folding resistance, compact structure, stable performance, simple installation, high quality of the blank body, hard tooth surface transmission, long service life and energy saving. .
| Item | Unit | Specification | ||||
| KLJ40/35 | KLJ40/40 | KLJ45/35 | KLJ45/40 | KLJ45/45 | ||
| Diameter of auger | mm | 400/350 | 400/400 | 450/350 | 450/400 | 450/450 |
| Max-extruding pressure | mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Power | kw | 45-55 | 55-75 | 55-75 | 75-90 | 90-110 |
| Weight (motot included) | kg | 8000 | 9000 | 10000 | 12000 | 14000 |
| Dimension | m | 6*2.8*1.5 | 6.5*2.8*1.5 | 7*3*1.5 | 7*3*1.8 | 7*3*1.8 |
| Capacity | T/H | 4-8 | 4-10 | 4-12 | 6-15 | 10-20 |
Brick Types
Why Choose Us?
Process
The general process of the brick production line (our company has professional technicians, can design the brick production line that meets the customer's requirements according to specific requirements)
