Vertical Type Brick Extruder Machine Double Spiral Extruder 10-25T Capacity For Brick Making

1set
MOQ
Negotiable
Price
Vertical Type Brick Extruder Machine Double Spiral Extruder 10-25T Capacity For Brick Making
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vertical Type Double Spiral Extruder
Capacity: 10-25T
Extruding Pressure: ≤3.0Mpa
Dimension: 4.5*2*4.5m
Power: 90+30kw
Weight: 16T
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

Brick Extruder Machine 10t

,

Brick Extruder Machine 25t

,

double spiral vacuum extruder machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: KLJ35/35-L2
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Vertical Type Double Spiral Extruder 10-25T Capacity For Brick Making

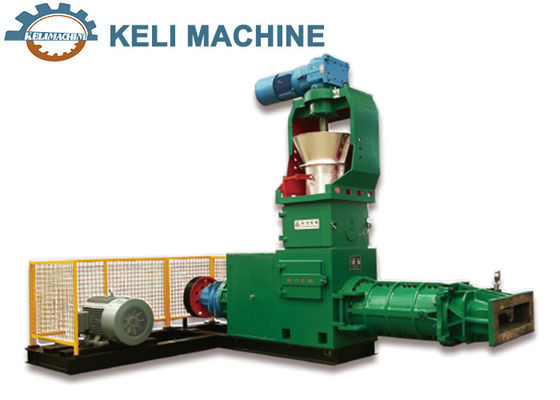

Vertical type double spiral extruder

The connection methods include electrical connection, pneumatic connection and mechanical connection.

The mechanical connection includes a frame, and the upper and lower stages are installed on the frame, and the upper and lower stages of the main shaft are respectively provided with a driving part, a feeding part and an extruding part.

The upper drive part includes an upper agitating shaft, an upper speed reducer, a mud puller, and an upper extrusion spiral blade.

The lower drive part includes a three-phase asynchronous variable frequency motor, a pneumatic clutch assembly, a P series planetary gear box, a counter roll gear, a lower extrusion main shaft, a lower extruded right-handed spiral, a lower extruded left-handed spiral, and a lower extruded auxiliary shaft; The lower extrusion part is mainly a primary and a secondary double-axis double helix, and adopts a spiral lining guide strip.



Item Capacity (T) Extruding pressure(Mpa) Dimension(M) Power(KW) Weight(T)
KLJ35/35-L2 10-25 ≤3.0 4.5*2*4.5 90+30 16
KLJ40/40-L2 15-30 ≤3.0 5*2.5*5.0 110+30 20



This series of machines is introduced to the latest technology in Europe. It is an extrusion molding machine specially designed for high-end ceramic materials, cement fiber products and semi-rigid plastic viscous materials. The equipment materials, technical structure, electrical system and operating system are all manufactured according to European standards. The device has a small footprint and a water cooling system, which is highly automative and operability. The performance is stable, the cleaning machine is convenient, the service life is long, and the maintenance cost can be effectively saved.



Vertical Type Brick Extruder Machine Double Spiral Extruder 10-25T Capacity For Brick Making 0



Why Choose Us?

Automatic operation, high yield

  • Use high quality steel.
  • Rugged, up and down two- -level operation, higher efficiency.
  • Vacuum extrusion pressure is large, and the output is twice the ordinary brick machine.

Brick hardness is higher

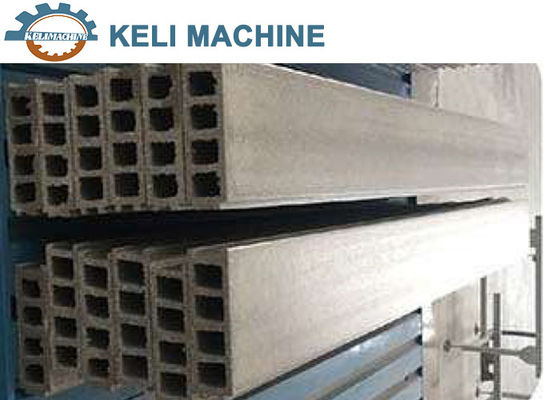

  • Can make a variety of hollow bricks, solid bricks and logo bricks.
  • Vacuum extrusion ensures higher yield.
  • Brick type can be customized according to user needs.

After-sales service is guaranteed

  • We have many years of work experience, technology maturation
  • We guide our 24-hour online guidance.
  • Our engineers can go to the scene guidance installation.

High cost performance, cost savings

  • We provide you with drawings and venue planning.
  • Factory direct sales, quality is guaranteed, and the price is far below similar equipment.
  • We can provide you with brick factory related supporting equipment.
