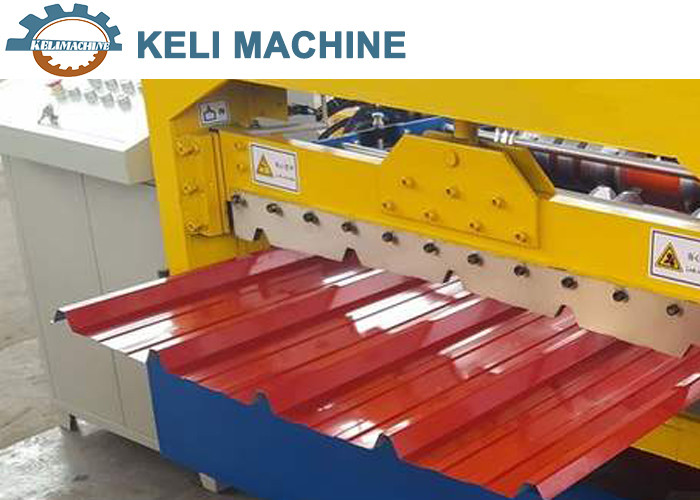

Tile Making Machine Aluminum Roof Panel Roll Forming Machine
Model | KL-TFM |
Suitable to process | Color steel plate |
Width of the plate | 1219mm |
Material of the cutting plate | Cr12 |
Main frame |
350H Steel |
Productivity | 8-10m/min |
Thickness |
0.4-0.8 |
Control system |
PLC |
Raw material |
PPGI PPGL GI GL |
Dimension(L*W*H) |
8*1.2*1.3m |
Weight |
4000 kg |
Feeding width |
1220mm |

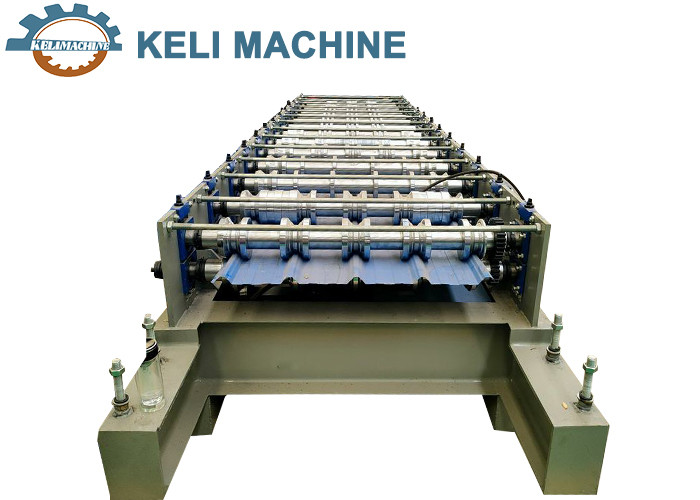

The machine is composed of the Frame, PLC control system, hydraulic station, and automatic shearing system. The tile/roof produced are flat and beautiful in appearance, uniform in paint pattern, and are widely used in industrial and civil buildings, such as houses, warehouses, garages, hangars, gymnasiums, exhibition halls, theaters and other room surfaces and walls. |
|
The machine adopts high-level automatic control software to realize production information management. The whole unit automation control system adopts a highly integrated network, which makes the automation system have superior performance. It also has the advantages of easy operation, easy maintenance and debugging, and easy mold replacement. |
