3150kN Hydraulic Machine 18kw For Refractory Brick Max Master Cylinder

1Set
MOQ
Negotiable
Price
3150kN Hydraulic Machine 18kw For Refractory Brick Max Master Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Brick Press Output: 3 Times/min
Feeding Cylinder: 100kN
Brick Size: 210-70 Customizable
Master Cylinder: 3150kN
Motor Power: 18kw
Product: Hydraulic Machine For Refractory Brick
High Light:

Automatic Brick Machine for Refractory

,

3150 kN Automatic Brick Machine

,

18kw Automatic Brick Making Machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO
Model Number: KIHR-315
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

315T Hydraulic Refractory Brick Making Machine 3 Times 6pcs Each Minutes

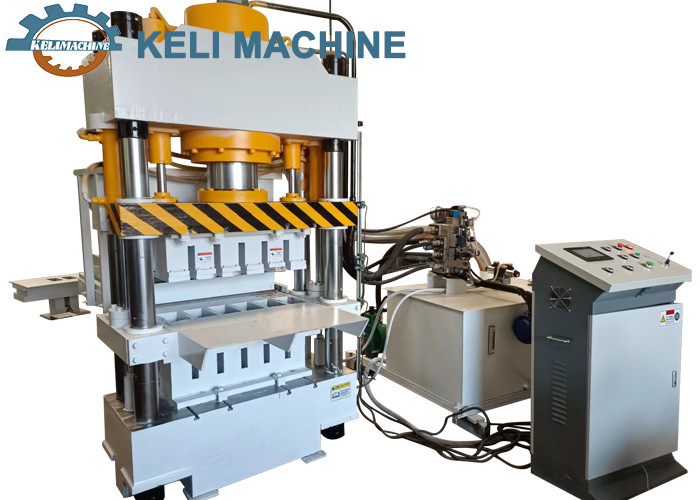

KIHR-315 Hydraulic Refractory Brick Making Machine
Parameters unit
Master cylinder KN 3150
Effective area of working table mm 1000x500
Maximum ejection stroke mm 100
Feeding cylinder KN 100
Maximum working pressure of liquid Mpa 25
Demolding cylinder KN 200
Brick Size mm 210-70 customizable
Maximum distance of slider mm 300
Maximum stroke for feeding mm 1000
Maximum distance of the slider from the table mm 300
Motor power KW 18
Oil pumps 1set 100YCY
Cooling form 1set water cooling
Operating Forms   Automatic Brick Dispensing / Manual Brick Grabbing
Brick press output   3 times/min
Thickness of pressed bricks mm 60
Number of pressed bricks pcs 2



3150kN Hydraulic Machine 18kw For Refractory Brick Max Master Cylinder 0



Overview of machine performance and structure

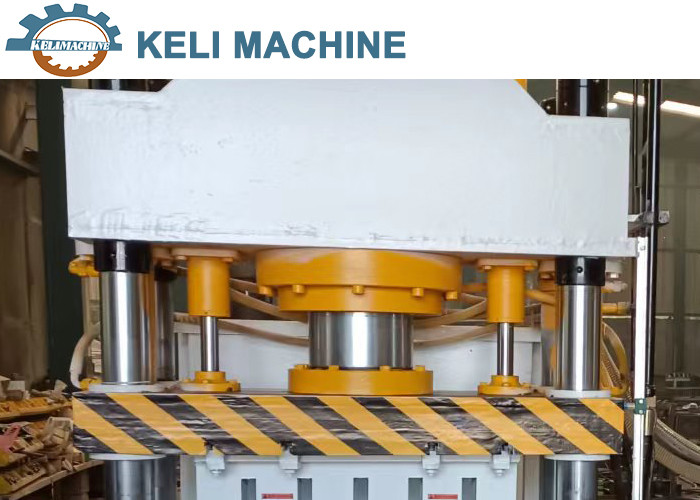

1. The machine body adopts four-column structure: the upper crossbeam and working table are welded parts, and all four columns are surface The surface of all four columns are high-frequency quenched, ground and chromium-plated.

2. The pressing tonnage is realized by a separate piston cylinder, the surface of piston rod is treated with high-frequency quenching and has a long service life, and the cylinder is sealed with imported materials.

3. machine T-slot distribution is designed according to conventional requirements (special requirements are designed according to guests)

4. The hydraulic system adopts advanced cartridge integrated system, equipped with independent oil inlet filtering device.

Description of electrical control system

1.The machine is controlled by PLC with independent electrical box.

2. There is a centralized operation control panel, which is covered with operation buttons and selection switches.

3. The control system has two kinds of operation modes: manual and automatic.

A. Manual: Point-action type, press the corresponding button to complete the corresponding action, release that is, stop, this function is used to adjust the mold.

B. Automatic: Rotate the switch from automatic press the "fabric" button, that can complete the following process route, fabric cylinder fabric - fabric cylinder return - slider fast down --Slowly pressurize the slider--Achieve the set pressure--Return of the slider--Top out of the lower cylinder. -- Fabric cylinder fabric (at the same time the finished product is pushed out) -- Fabric cylinder return .......

4. Safety settings:

A. Emergency stop function: when the machine is abnormal, press the emergency stop button press work all stop.

B. overload protection, the hydraulic system is equipped with a hydraulic safety valve to ensure that the press will not work overload.

5. The supplier is responsible for installation and commissioning, but the buyer need to pay for the round trip tickets and arrange the accommodation and transportation in your country.

6. The supplier's products since the date of sale of the implementation of the "warranty service", the quality assurance period of one year, in the warranty period, non-user reasons for the damage caused by the parts, free of charge replacement (wearing parts are not under warranty). When the warranty period expires, a lifetime warranty will be implemented, and the labor cost will be charged.
