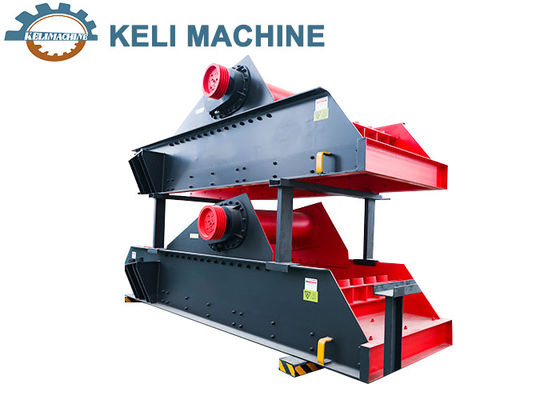

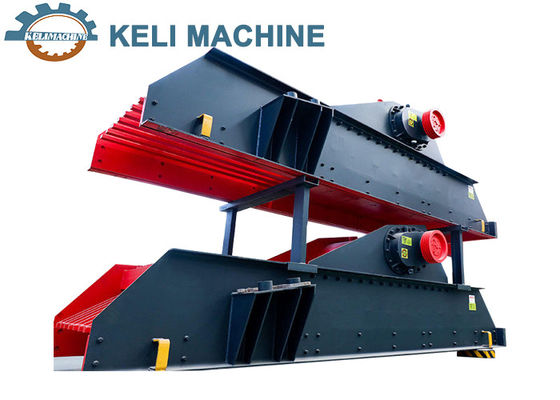

Vibrating Feeder Machine For Clinker Limestone Concrete Soil Coal
Vibratory feeder is an instrument that uses vibration to "feed" material to a process or machine. Vibratory feeders use both vibration and gravity to move material. Gravity is used to determine the direction, either down, or down and to a side, and then vibration is used to move the material. They are used to feed block and granular materials uniformly, regularly and continuously from the storage bin in to stone crushers. Also it could separate the raw materials primarily by grate plate.
Vibrating feeder is widely used to match the crushing and sieving equipment in many industries including stone crushing plant, metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
Working principle
Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.
| Model | Trough size(mm) | Max Feed size(mm) | Capacity (t/h) | Motor Powder(kw) | Overall dimension(mm) |
| KL-ZSW-650X2500 | 650x2500 | 300 | 50-80 | 5.5 | 2500x1360x780 |
| KL-ZSW-850x3000 | 850x3000 | 400 | 80-120 | 7.5 | 3110x1800x1600 |
| KL-ZSW-960x3800 | 960x3800 | 500 | 120-210 | 11 | 3850x1950x1630 |
| KL-ZSW-1100x4200 | 1100x4200 | 580 | 200-430 | 15 | 4400x2050x1660 |
| KL-ZSW-1100x4900 | 1100x4900 | 580 | 280-500 | 15 | 5200x2050x1700 |
| KL-ZSW-1300x4900 | 1300x4900 | 650 | 450-600 | 22 | 5200x2350x1750 |
Product Description
Vibrating Feeder
Vibrating feeder is also called vibrating feeder. In the production process, it can give the lumpy and granular materials from the storage bin to the receiving device evenly, regularly and continuously, and it can feed the crushing machinery continuously and evenly for grading in the sand and gravel production line.
ZSW vibrating feeder has the features of smooth vibration, reliable work, long service life, etc. It can be used for continuous and even feeding of crushing machinery and screening of materials, and is widely used in crushing and screening combined equipment in mineral processing, building materials, silicate and chemical industries.
The feeder produced by our company is a linear vibrating feeder with the features of smooth vibration, reliable work, long life, etc. It can provide continuous and even feeding for the crushing machinery and screening of materials, and is widely used in the crushing and screening joint equipment in mineral processing, building materials, silicate and chemical industries. It is a new product in the domestic feeder market, and it is a new equipment with high efficiency and energy-saving which is essential for crushing and screening production line.
Vibrating feeder performance characteristics: smooth vibration, reliable work, long life; can adjust the excitation force, can change and control the flow at any time, convenient and stable adjustment; vibration motor as the source of excitation, low noise, low power consumption, good adjustment performance, no material rushing phenomenon. Simple structure, reliable operation, easy to adjust and install, light weight, small volume, easy maintenance, when the closed structure of the body can prevent dust pollution.
