PC1000x800 Clay Brick Machine 75kw Hammer Mill Brick Extruder Machine

PC1000x800 Clay Brick Machine 75kw Hammer Mill Brick Extruder Machine
Features Gallery Product Description Request A Quote
Type: Clay Brick Making Machine
Productivity: 25-50t/h
Feed Particle Size: 350mm
Dimensions: 1600*1390*1575mm
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

75kw clay brick machine


350mm clay brick machine


30t/h brick extruder machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: PC1000x800
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

PC1000x800 Clay Brick Making Machine 75kw Hammer Mill Crusher


Working Principle

Impact crushers are mainly used to crush materials by impact energy. During the operation of the hammer crusher, a high speed rotor is driven by the motor and the material enters the crusher cavity evenly. Meanwhile, the gravity of the material itself causes the material to rush from the rotating hammer head to the baffle and sieve bar in the frame. At the same time, the gravity of the material itself causes the material to rush from the high speed rotating hammer head to the baffle plate and sieve bar in the frame.


Model PC1000x800
Feed particle size (mm) 350
Discharge particle size (mm) 35
Productivity(t/h) 25-50
Number of motor poles 4
Power(kw) 75
Dimensions(mm) 1600*1390*1575
Machine weight(kg) 4300


(1) Working hammer head, cast by new technology, has the characteristics of wear resistance and impact resistance.

(2) The required particle size can be adjusted according to customer requirements.

(3) The structure of hammer break body is sealed, which solves the problems of dust pollution in crushing workshop and ash leakage from the body.

(4) The overall design has the advantages of beautiful shape, compact structure, few wearing parts and easy maintenance, which is an upgraded product.

(5) Compact structure, beautiful appearance, good wear resistance and easy maintenance.


Advantages and disadvantages

The advantages of the hammer crusher are: large crushing ratio (generally 10-25, up to 50), high production capacity, homogeneous product, less over-powdering, low energy consumption per unit of product, simple structure, light quality of equipment, easy operation and maintenance, etc. The hammer crusher is suitable for crushing all kinds of medium hardness and brittle materials, such as limestone, coal, salt, baiya, gypsum, alum, brick, tile, gangue, etc.. The compressive strength of the crushed material does not exceed 150 MPa. The machine is mainly used in cement, coal selection, power generation, building materials and compound fertilizer industries. It can crush raw materials of different sizes into uniform particles for processing in the next process, with reliable mechanical structure, high production efficiency and good applicability.

The disadvantages of the hammer crusher are: the hammer head and castor sieve wear quickly, the maintenance and balance finding time is long, when crushing hard material materials, the wear is faster; when crushing sticky and wet materials, easy to block the castor sieve slit, for this reason it is easy to cause downtime (the moisture content of the material should not exceed 10%). When crushing hard materials, the hammer head and liner plate are worn out, consuming more metal materials and often replacing wearable parts requires more maintenance time.

The hammer crusher is used to crush a variety of medium-hard and abrasive materials. The compressive strength of the material does not exceed 100 MPa and the moisture content is less than 15%. The materials to be crushed are coal, salt, chalk, gypsum, brick and tile, limestone, etc. The main working part of the ring hammer crusher is the rotor with the hammer head.

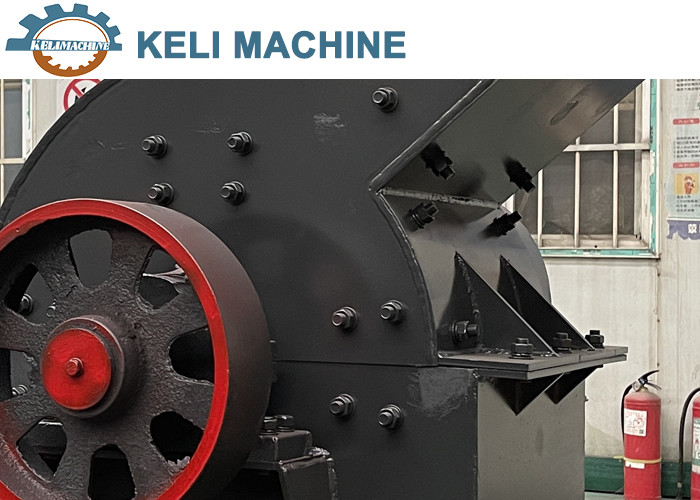

Product Show

PC1000x800 Clay Brick Machine 75kw Hammer Mill Brick Extruder Machine 0
