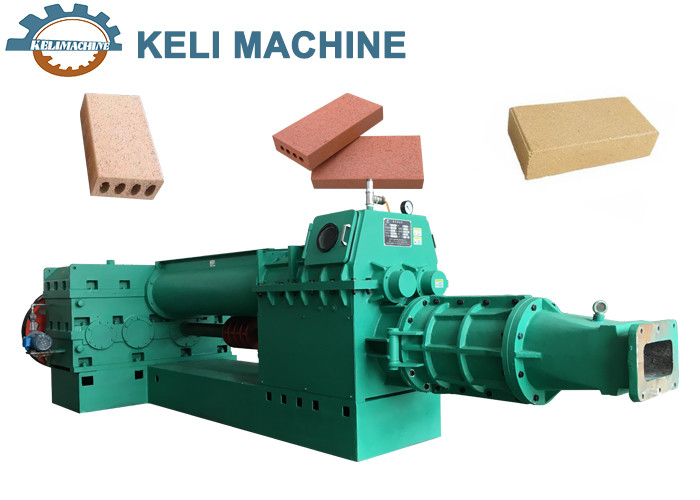

Brick Making Machine Compact Structure Automatic Vacuum Extruder
| Compact structure vacuum extruder | |||||
| Item | KLJ40/35 | KLJ40/40 | KLJ45/35 | KLJ45/40 | KLJ45/45 |
Dimension | 6*2.8*1.5 | 6.5*2.8*1.5 | 7*3*1.5 | 7*3*1.8 | 7*3*1.8 |
Power | 45-55 | 55-75 | 55-75 | 75-90 | 90-110 |
| Diameter of auger(mm) | 400/350 | 400/400 | 450/350 | 450/400 | 450/450 |
Capacity | 4-8 | 4-10 | 4-12 | 6-15 | 10-20 |
Weight (motot included) | 8000 | 9000 | 10000 | 12000 | 14000 |
Max-extruding pressure (mpa) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
Compact structure vacuum extruder |
Suitable for industries with low production demand, such as ceramics, low price |
This machine is an integrated vacuum sludge equipment. |
Synchronous shunt drive through a clutch and reducer with a power, extrusion under the agitation, coordinated operation, extrusion of clay, shale, fly ash, coal gangue and other raw materials into various solid bricks, perforated bricks, hollow bricks |
Adopting domestic advanced axial pneumatic clutch for quick clutching and reliable operation |
Soil plasticity index: more than 7 hollow bricks and more than 5 solid bricks. |
The utility model has the advantages of large extrusion pressure, high vacuum, compact molding, pressure resistance, strong folding resistance, compact structure, stable performance, simple installation, high quality of the blank body, hard tooth surface transmission, long service life and energy saving. |
The brick’s raw materials which have been batched, stirred and rolled are further stirred (or added with steam), pumped, extruded, and formed into ordinary brick or hollow brick strips, and cut into various kinds by a cutting machine. Specifications of bricks. The extruder includes four parts: upper stage, lower stage, vacuum system and electric clutch system. The whole machine adopts all-steel welded structure, artificial aging treatment, high strength; the structure is more compact and simpler than the two-stage series. |
Company
Yixing Keli Machine Co., Ltd., founded in 2006, is a mechanical manufacturing enterprise integrating professional research and development, manufacturing and trade. |
The company covers an area of 21,000 square meters, including 5,600 square meters of production workshops and 4,000 square meters of offices, R&D centers and supporting buildings. |
We adhere to the principle of 'scientific development, striving for innovation' Our business philosophy has been to maintain good technical communication and cooperation with advanced equipment manufacturers in the brick and tile industry, cement product industry, ceramic product industry, and other foreign countries for many years, and to introduce their advanced processes and manufacturing technologies. T |
