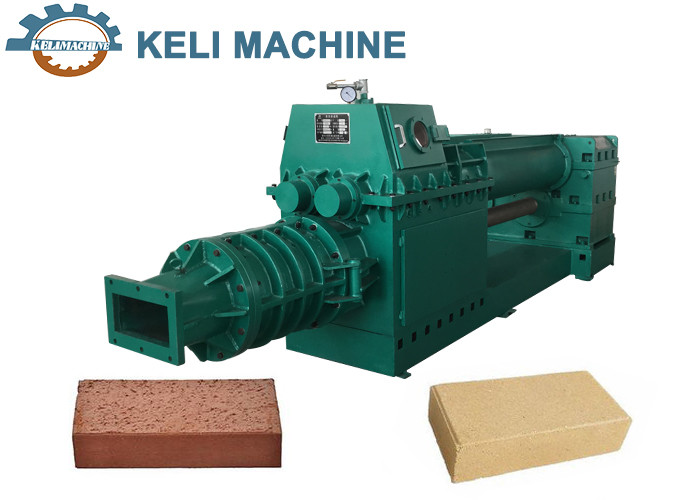

KLJ40/40 Vacuum Extruder Automatic Brick Making Machine Power 55-75kw
Compact structure vacuum extruder | ||||||
Suitable for industries with low production demand, such as ceramics, low price | ||||||
This machine is an integrated vacuum sludge equipment. | ||||||
Adopting domestic advanced axial pneumatic clutch for quick clutching and reliable operation |
||||||
Soil plasticity index: more than 7 hollow bricks and more than 5 solid bricks. |
||||||
Item | Unit | Specification | ||||
KLJ40/35 | KLJ40/40 | KLJ45/35 | KLJ45/40 | KLJ45/45 | ||
Diameter of auger | mm | 400/350 | 400/400 | 450/350 | 450/400 | 450/450 |
Dimension | m | 6*2.8*1.5 | 6.5*2.8*1.5 | 7*3*1.5 | 7*3*1.8 | 7*3*1.8 |
Max-extruding pressure | mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
Power | kw | 45-55 | 55-75 | 55-75 | 75-90 | 90-110 |
Weight (motot included) | kg | 8000 | 9000 | 10000 | 12000 | 14000 |
Capacity | T/H | 4-8 | 4-10 | 4-12 | 6-15 | 10-20 |
A brick begins its life as raw material that is carefully batched, stirred, and rolled. The materials are then further stirred (or added with steam), pumped, and extruded to take shape. This extrusion process is then divided into four categories: upper stage, lower stage, vacuum system and electric clutch system.
To ensure reliability, this machine is designed with a domestic advanced axial pneumatic clutch that allows quick clutching. The structure itself is crafted from an all-steel welded structure with aging treatment to achieve high strength, granting itself a more compact and simpler design than the two-stage series.
As for specifications, the soil plasticity index must be more than 7 for hollow bricks, and more than 5 for solid bricks.
Technical Support and Service for Automatic Brick Making Machine
We are committed to providing the highest quality of technical support and service for our Automatic Brick Making Machine. Our experienced technicians and engineers can provide timely and professional services to ensure the success of your Automatic Brick Making Machine project.
We offer a range of services to ensure the optimal performance of your Automatic Brick Making Machine, including:
We are dedicated to providing the best possible service and support for your Automatic Brick Making Machine. If you have any questions or require any additional assistance, please do not hesitate to contact us.
Automatic Brick Making Machine
Q1: What is the brand name and model number of this machine?
A1: The brand name is KELI and the model number is KLJ40/40.
Q2: Where does this machine come from?
A2: This machine is made in China.
Q3: What is the production capacity of this machine?
A3: This machine can produce up to 4-10Tons per hour.
Q4: What power does this machine require?
A4: This machine requires 55-75KW of power.
Q5: What is the size of the bricks produced by this machine?
A5: Custom
