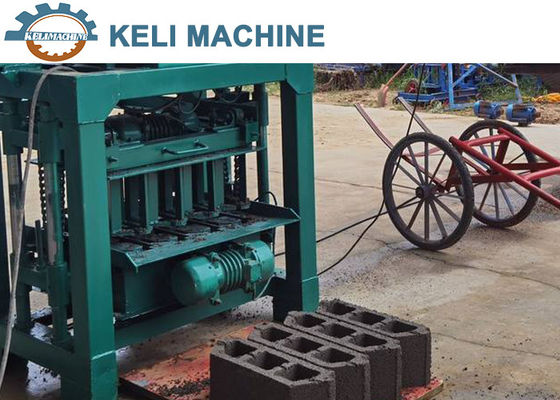

Concrete Brick Making Machine Electric Hollow Block Making Machine
Industry-specific attributes
|
Model: KL-HB |
|
Brick Raw Material: Cement/Concrete |
|
Production Capacity (Pieces/8 hours): 4480pcs/8hours, 2500pcs/8hours, 3400pcs/8hours |
|
Brick size: 400*100*200mm, 400*120*200mm, 200*100*60mm, 300*150*100mm, 400*150*200mm |
|
Core Components: PLC, Pressure vessel, Engine, Bearing, Gearbox |
|
Weight: 3500kg |
|
Voltage: 380v |
|
Dimension(L*W*H): 5000*1650*2200mm |
|
Raw Material: Concrete/Cement/Sand |
|
Molding Cycle: 20-25s |
|
Vibration Frequency: 75KN |
|
Pallet Size: 850*550*25mm |
|
Available raw materials: Slag, fly ash, lime powder, river sand, black sand, rock wool slag, perlite, steel slag, smelting slag, water slag, copper slag, power plant wet ash discharge, construction waste, tailing slag, ceramsite, stone waste, etc. Wastes that can be solidified and cement can be used (soil content should not exceed 5%). |
| Brick machine technical parameters | |
| 4-2B Brick Machine | |
| Size | 1200*1200*1600mm |
| Production | Standard brick 25000pieces/Hollow brick 2000pieces |
| Weight | 700kg |
| Molding cycle | 30seconds/time |
| Motor power | 4.8kw |
| 350 Concrete Mixer | |
| Size | 900*900*550mm |
| Production | 350L |
| Weight | 260kg |
| Engine type | Electric/Diesel |
| A trolley+3M belt conveyor | |
| Complimentary set of standard brick molds | |
| Small cement brick machine is a kind of mechanical equipment that uses slag, slag, fly ash, stone powder, sand, stone, cement as raw materials, scientifically proportioning, mixing with water, and pressing cement brick, hollow block or color pavement brick by brick making machinery under high pressure. |
|
Product advantage 1.It replaces the two processes of roller and scraping ruler in the traditional construction process, reduces the cost and improves the efficiency. 2.The aluminum alloy material used in the fuselage is light, easy to use, safe and high in flatness. |
