KELI Feed Particle Size 350mm Mud Brick Manufacturing Machine Hammer Crusher

KELI Feed Particle Size 350mm Mud Brick Manufacturing Machine Hammer Crusher
Features Gallery Product Description Request A Quote
Productivity: 30-55t/h
Type: Hammer Crusher For Clay
Number Of Motor Poles: 6
Dimensions: 1800*1590*1775mm
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

30t/hour mud brick machine


55t/hour mud brick machine


350mm mud brick manufacturing machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: PC1000x1000
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

KELI Feed Particle Size 350mm Brick Making Machine Hammer Crusher


Model   PC1000x1000
Feed particle size mm 350
Discharge particle size mm 35
Productivity t/h 30-55
Number of motor poles   6
Power kw 90
Dimensions mm



Machine weight kg 8000


Main applications

For crushing materials such as coal, salt, chalk, gypsum, brick and tile, limestone, etc. Also used in crushing fibrous structure, elastic and tough shredded wood, paper or crushed asbestos cement waste, etc. Which can be used to recycle asbestos fibres, etc. Furthermore, not only is the hammer crusher used in crushing lines, sand making lines, but is also an alternative to the cone crusher in mineral processing lines.s, sand making lines, but it can also replace the cone crusher in mineral processing lines.


Product Show

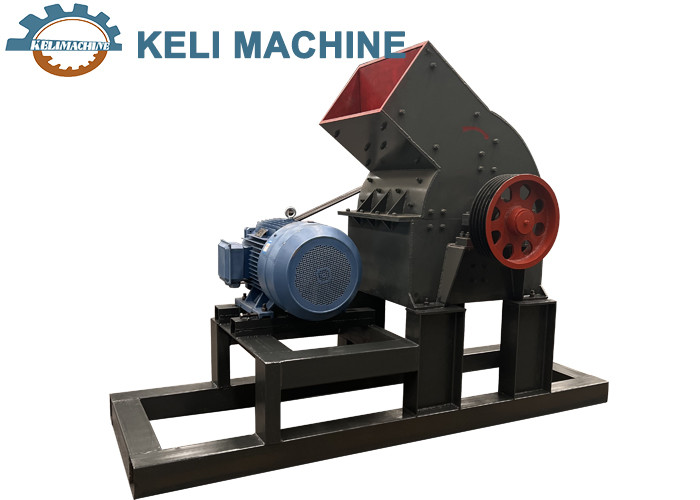

KELI Feed Particle Size 350mm Mud Brick Manufacturing Machine Hammer Crusher 0


Operation and Maintenance

It is a high-speed rotary crushing machine. The operator must operate the hammer crusher in strict accordance with the rules and regulations to ensure that it works properly and that maintenance work is carried out.

(1) Make contact with the relevant upper and lower processes of the machine before starting and stopping, and carry out the correct operation in the sequence of starting and stopping.

(2) Start the crusher empty and stop it after the material in the crushing chamber has been discharged.

(3) Keep checking all ground bolts and liner bolts of the equipment for looseness, if any, they should be tightened in time.

(4) To check the use of easy-to-wear and easy-to-wear parts such as hammer head and liner plate frequently, if problems are found, they should be dealt with in time.

(5) should often look at the lubrication situation, to maintain a good state of the lubrication system. Rotor bearing temperature should be kept below 60 ℃, the highest does not exceed 70 ℃, if found over temperature should identify the causes, prompt measures to eliminate.

(6) Make sure that the material is fed evenly and that no metal debris is fed in.

(7) To check whether the size of the discharge material meets the quality requirements, if not, the grate should be replaced or the height of the grate bracket should be adjusted.


Installation test run

  • Prior to installation, the terrain can be selected according to the source of raw materials.
  • From the machine by the foot bolt fixed on the concrete, design the foundation to leave the discharge slot, the inclination can not be less than 50°, but the user can also according to the feeder and transport equipment to determine.
  • Motor must be installed in the opposite direction to the feeder.
  • The electrical equipment should be located in a convenient position for use.
  • First check whether the fasteners are completely solid before the test run.
  • Examine whether metal objects or other non-breakable debris fall into the body of the machine.
  • The inspection bearing whether the appropriate lubricant.
  • Rotor rotation by hand, and see whether it is normal, and whether there is friction phenomenon, and if the movement is confirmed as no obstruction, can empty start, after half an hour of test drive no noise, no swing, and the temperature rise of the bearing does not exceed 30 ℃ can be tested for load.
