PC800x600 Clay Brick Moulding Machine 30-55kw Power Hammer Crusher Press

PC800x600 Clay Brick Moulding Machine 30-55kw Power Hammer Crusher Press
Features Gallery Product Description Request A Quote
Machine Weight: 3200kg
Dimensions: 1310*1180*1310mm
Feed Particle Size: 250mm
Type: Hammer Crusher For Clay Brick Making
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

30kw clay brick moulding machine


55kw clay brick moulding machine


250mm clay brick press

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: PC800x600
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Clay Brick Making Machine PC800x600 30-55kw Power Hammer Crusher


The hammer crusher is a machine that crushes materials in the form of impact, and is divided into two forms: single rotor and double rotor. It is a crusher for direct crushing of materials with maximum size of 600-1800 mm to 25 or less in one section. Hammer crusher is suitable for medium and fine crushing of medium hardness materials such as limestone, slag, coke, coal, etc. in cement, chemical, electric power, metallurgy and other industrial sectors.

The hammer crusher is divided into two forms: single rotor and double rotor. The single rotor is divided into reversible and irreversible types. Single rotor hammer crushers and ring hammer crushers are widely used.

The hammer crusher consists of a box, rotor, hammer head, impact liner, screen plate, etc.


The main working part of the hammer crusher is the rotor with hammers (also called hammer head). It is crushed by the blow, impact, shear and grinding action of the hammer in high speed movement. In the lower part of the rotor, there is a sieve plate, and the particles smaller than the size of the sieve are discharged through the sieve plate. The hammer crusher is suitable for crushing minerals of various brittle materials. The crushed materials are coal, salt, baiya, gypsum, alum, brick, tile, limestone, etc. The compressive strength of the hammer crusher material is not more than 100 MPa and the humidity is not more than 15%. It can be used as crushing equipment for stone crushing, stone crushing, mining crushing, plastic crushing, garbage crushing and other materials.


Model PC800x600
Feed particle size  (mm) 250
Number of motor poles 4
Dimensions (mm) 1310*1180*1310
Discharge particle size  (mm) 35
Machine weight (kg) 3200
Power (kw) 30-55
Productivity (t/h)



Working Principle

The hammer crusher mainly relies on impact energy to complete the crushing operation. When the hammer crusher is in operation, the motor drives the rotor to rotate at high speed and the material enters the crusher cavity evenly. The high speed rotating hammer head impacts and shears the material, causing it to be crushed, while the gravity of the material itself causes the material to rush from the high speed rotating hammer head to the baffles and screen bars in the frame. Material larger than the size of the screen hole is left on the screen plate to continue to be struck and ground by the hammers until it is crushed to the required size and finally discharged from the machine through the screen plate.


Main Applications

The crushed materials are coal, salt, chalk, gypsum, brick and tile, limestone, etc. It is also used to crush shredded wood with fiber structure, elasticity and toughness, paper or crushed asbestos cement waste, etc. It can be used to recycle asbestos fiber, etc. In addition, hammer crusher can not only be used in crushing production line, sand making production line, but also can replace cone crusher in mineral processing production line.


Product Show

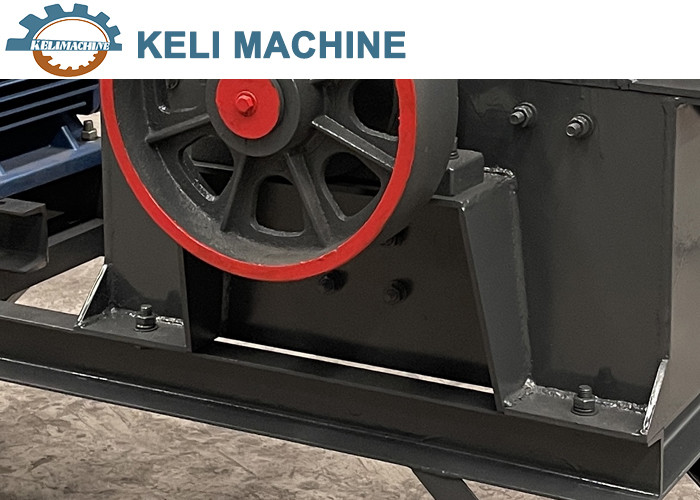

PC800x600 Clay Brick Moulding Machine 30-55kw Power Hammer Crusher Press 0
