5-150 M³/H Interlocking Clay Brick Making Machine Box Feeder Machine

5-150 M³/H Interlocking Clay Brick Making Machine Box Feeder Machine
Features Gallery Product Description Request A Quote
Production Capacity Range: 5-150m³/h
Weight (incl. Motor): 6800kg
Distance Between Shafts: 4500mm
Effective Width Of Fender At Outlet: 800mm
Distributor Power: 2.2kw
Type: Clay Brick Making Machine
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

5 m³/h interlocking clay brick making machine


150 m³/h interlocking clay brick making machine


800mm box feeder machine

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: GL4.6/1000
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

Clay Brick Making Machine Boxfeeder Production Capacity Range 5-150m³/h


Product Introduction

Adopting high-quality new steel plate, the channel steel adopts the national standard, and the box type earth-filling box adopts three-speed shifting.


Product Parameter

Name Unit GL4.6/1000 GL6/1000 GL8/1000 GL6/1500
Effective width of fender at outlet mm 800 800 1200 1200
Distance between shafts mm 4500 5000 6000 6000
Loading power kw 4 4 5.5 7.5
Distributor power kw 2.2 2.2 3 4.0
Weight (incl. Motor) kg 6800 8800 10000 14200
Dimensions m 5.5*1.8*1.7 7*1.8*1.7 8.5*1.8*1.7 7.5*2.4*1.9
Production capacity range m³/h 5-150 (according to different material characters)

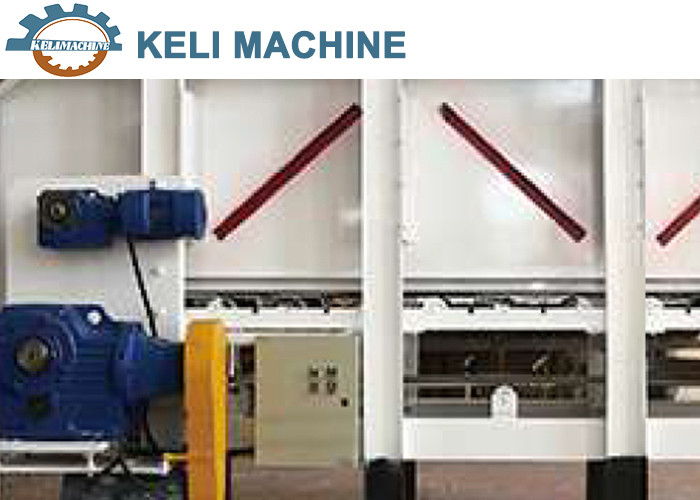

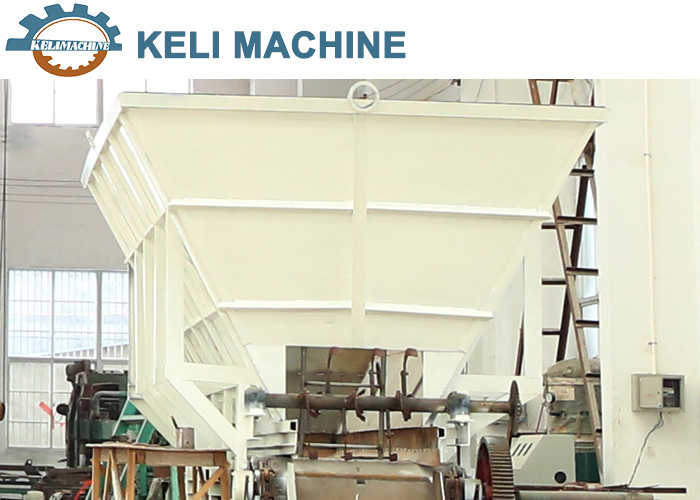

It consists of three parts: storage, drive and conveying device for storing clay and continuous uniform feeding.


It is a device for uniform and quantitative feeding. By adjusting the height of the ram, there is a speed of the conveyor belt, controlling the feed amount of the raw material, and breaking the large loose mud. And through the adjustment system, the speed of the conveyor belt is controlled, the feedstock of the raw materials is controlled, and the mud and the raw materials are proportionally squeezed. This machine has the functions of mixing and shredding, and it is one of the important equipments that must be used by medium and large brick and tile enterprises.


It is suitable for uniform feeding of clay, fly ash and scattered shale, coal gangue and other materials with water content not more than 20%. (Applicable to uniform fabrics of clay or loess and coal gangue with a relative water content of 23% and a particle size of not more than 250 mm.)


5-150 M³/H Interlocking Clay Brick Making Machine Box Feeder Machine 0


After sales service


1. We have many years of work experience and mature operation technology

2. Our engineers can go to the site to guide the installation.

3. We provide 24 hours online guidance.


Before the customer purchases the machine, the company sends engineering and technical personnel to the user's site for free to plan the site, design the best process and solution for the user; After purchasing the machine, dedicated after-sales service personnel will be assigned free of charge to guide customers in installation and debugging, assist customers in planning and managing the equipment, and ensure customer satisfaction. The company not only has a skilled and experienced after-sales team, but also closely follows the trend of E-generation, creating a pioneer in e-commerce in the industry. The implementation of internet sales and tracking services not only extensively promotes the company's products, but also provides convenient after-sales services for customers.
