GL6/1000 Red Bricks Manufacturing Machine Clay Brick Extruder Distributor Power 2.2kw

1set
MOQ
Negotiable
Price
GL6/1000 Red Bricks Manufacturing Machine Clay Brick Extruder Distributor Power 2.2kw
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Clay Brick Making Machine
Effective Width Of Fender At Outlet: 800mm
Distance Between Shafts: 5000mm
Loading Power: 4kw
Distributor Power: 2.2kw
Weight (incl. Motor): 8800kg
Brand: Keli
Application: Brick Making
Voltage: 220v 380v 415v
Customization: OEM ODM
High Light:

2.2kw red bricks manufacturing machine

,

4kw red bricks manufacturing machine

,

800mm clay brick extruder

Basic Infomation
Place of Origin: China
Brand Name: KELI
Certification: ISO9001
Model Number: GL6/1000
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Product Description

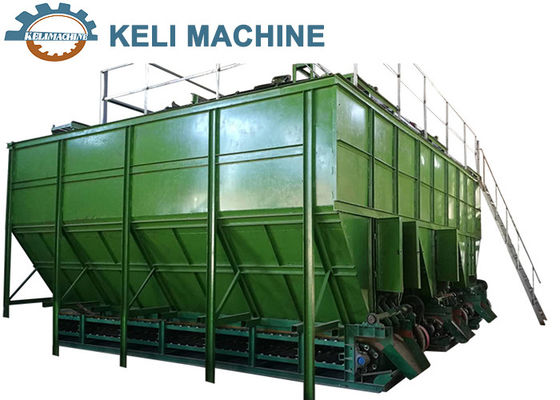

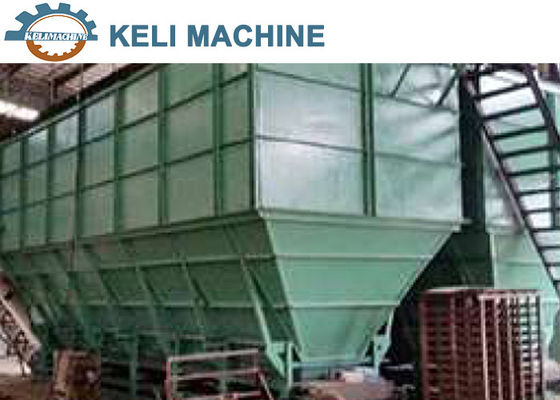

Clay Brick Making Machine GL6/1000 Boxfeeder Distributor Power 2.2kw



Name Unit Parameter
GL4.6/1000 GL6/1000 GL8/1000 GL6/1500
Effective width of fender at outlet mm 800 800 1200 1200
Distance between shafts mm 4500 5000 6000 6000
Loading power kw 4 4 5.5 7.5
Distributor power kw 2.2 2.2 3 4.0
Weight (incl. Motor) kg 6800 8800 10000 14200
Dimensions m 5.5*1.8*1.7 7*1.8*1.7 8.5*1.8*1.7 7.5*2.4*1.9

Production capacity range:

5-150m³/h according to different material characters


Product Introduction
  • Adopting high-quality new steel plate, the channel steel adopts the national standard, and the box type earth-filling box adopts three-speed shifting.
  • Structure: It consists of three parts: storage, drive and conveying device for storing clay and continuous uniform feeding.
  • Uses: It is a device for uniform and quantitative feeding. By adjusting the height of the ram, there is a speed of the conveyor belt, controlling the feed amount of the raw material, and breaking the large loose mud. And through the adjustment system, the speed of the conveyor belt is controlled, the feedstock of the raw materials is controlled, and the mud and the raw materials are proportionally squeezed. This machine has the functions of mixing and shredding, and it is one of the important equipments that must be used by medium and large brick and tile enterprises.
  • Applicability: It is suitable for uniform feeding of clay, fly ash and scattered shale, coal gangue and other materials with water content not more than 20%. (Applicable to uniform fabrics of clay or loess and coal gangue with a relative water content of 23% and a particle size of not more than 250 mm.)



Company Profile

Yixing Keli Building Material Machinery Equipment Co., Ltd, founded in 2006, is a professional R & D, manufacturing and trading machinery manufacturing enterprise. It is a member of the Brick and Tile Association and a member of the National Wall Material Technology Information Network. The company has over 20 years of experience in brick and tile machinery repair, including senior engineers, scientific and technological personnel, and multiple key employees. Through the continuous efforts of all the staff for many years, we have established a complete and effective pre-sales, sales and after-sales service system. The whole company team has complete ability.



The main characteristics of the "Keli" brand brick and tile machinery series products are:

  1. The main extruder spindle adopts floating shaft technology, which eliminates the problem of shaking the head of the brick machine and brings a lot of convenience to users for normal maintenance. It can meet the needs of domestic and foreign friends at different levels of sintered brick enterprises using coal gangue, fly ash, shale, and river silt as raw materials.
  2. The gear transmission system adopts hard tooth surface technology;
  3. Unique design, craftsmanship, and compact structure;
  4. Shaft and sealing parts strictly comply with national and industry standards;
