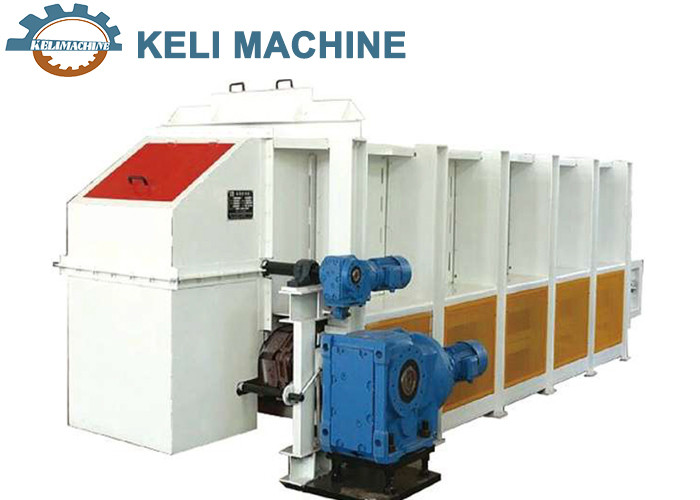

Clay Brick Making Machine GL4.6/1000 Box Feeder Loading Power 4kw
Box feeder
Adopting high-quality new steel plate, the channel steel adopts the national standard, and the box type earth-filling box adopts three-speed shifting.
Structure: It consists of three parts: storage, drive and conveying device for storing clay and continuous uniform feeding.
Name | Unit | Parameter | |||
GL4.6/1000 | GL6/1000 | GL8/1000 | GL6/1500 | ||
Effective width of fender at outlet | mm | 800 | 800 | 1200 | 1200 |
Distance between shafts | mm | 4500 | 5000 | 6000 | 6000 |
Loading power | kw | 4 | 4 | 5.5 | 7.5 |
Distributor power | kw | 2.2 | 2.2 | 3 | 4.0 |
Weight (incl. Motor) | kg | 6800 | 8800 | 10000 | 14200 |
Dimensions | m | 5.5*1.8*1.7 | 7*1.8*1.7 | 8.5*1.8*1.7 | 7.5*2.4*1.9 |
Production capacity range: 5-150m³/h according to different material characters |
Applicability: It is suitable for uniform feeding of clay, fly ash and scattered shale, coal gangue and other materials with water content not more than 20%. (Applicable to uniform fabrics of clay or loess and coal gangue with a relative water content of 23% and a particle size of not more than 250 mm.)
Uses: It is a device for uniform and quantitative feeding. By adjusting the height of the ram, there is a speed of the conveyor belt, controlling the feed amount of the raw material, and breaking the large loose mud. And through the adjustment system, the speed of the conveyor belt is controlled, the feedstock of the raw materials is controlled, and the mud and the raw materials are proportionally squeezed. This machine has the functions of mixing and shredding, and it is one of the important equipments that must be used by medium and large brick and tile enterprises.
